Two-Outlet Concealed Thermostatic Rough-In Valve TSVC3200
Key Features

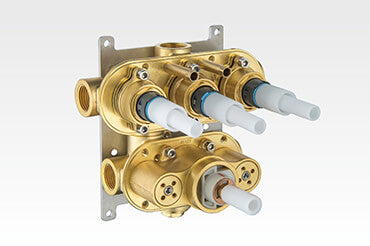

Solid Brass Valve Body
Solid brass construction provides reliable strength, pressure resistance, and long-term durability.

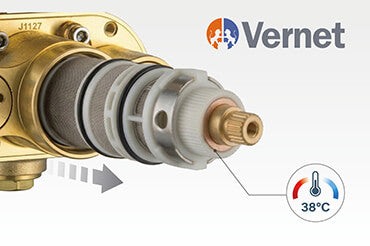

French Vernet Thermostatic Cartridge
Provides stable and precise temperature control for a safe and comfortable showering experience.

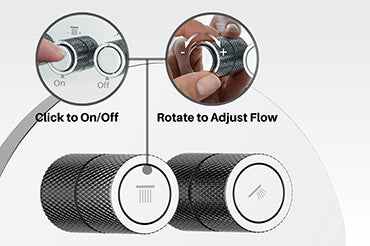

Neoperl Push-Button Volume Controls
Each push button provides independent on/off operation and individual flow adjustment for one shower outlet.

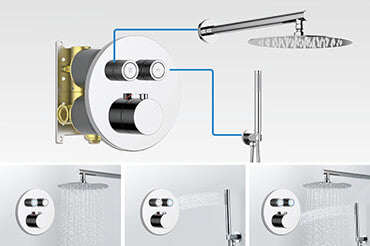

Simultaneous Outlet Operation
Multiple shower outlets can operate simultaneously, subject to the available water pressure and supply capacity.

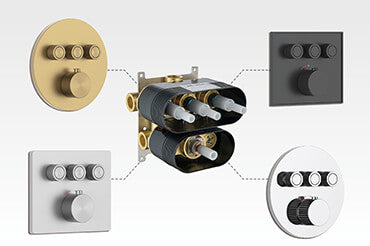

Finish-Independent Rough-In Valve
The concealed rough-in valve can be installed during construction, while compatible trim finishes and designs can be selected later.

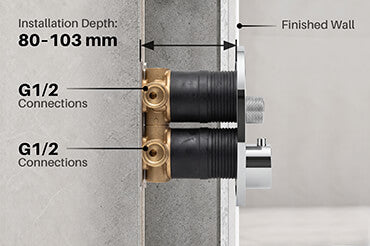

Flexible Concealed Installation
Features G1/2 inlet and outlet connections with an adjustable installation depth of 80–103 mm.
Product Description
The VT09C3201 is a two-outlet concealed thermostatic shower mixer featuring a solid brass body, French Vernet thermostatic cartridge and two Neoperl push-button controls. Each outlet control combines push-button on/off operation with independent rotary volume adjustment, and both outlets can operate simultaneously.
The complete mixer includes the built-in half-box valve, round SUS304 trim plate and G1/2 connections. The valve requires hot water from the left and cold water from the right.
Product Features
- Solid Brass Construction: Durable brass valve body designed for concealed wall installation.
- French Vernet Cartridge: Provides stable thermostatic temperature control and dependable performance.
- Neoperl Outlet Controls: Two independent controls combine push-button on/off operation with rotary volume adjustment.
- Two Simultaneous Functions: Both water outlets can operate separately or at the same time.
- Separate Temperature Control: Lower rotary handle allows the mixed-water temperature to be adjusted independently.
- High-Flow Performance: Delivers a flow rate of up to 24 L/min at 3 bar.
- Complete Built-In System: Half-box concealed valve and mounting plate are included.
- Flexible Installation Depth: Suitable for installation depths from 80 to 103 mm.
- SUS304 Trim Plate: Round stainless steel faceplate provides durability and a clean appearance.
- Defined Inlet Direction: Hot water connects on the left and cold water on the right.
- Standard Connections: G1/2 connections support the water inlets and both outlets.
- Protective Packaging: Packed in a box with EPE foam.
Product Details
- Product type: Concealed thermostatic shower mixer
- Body material: Solid brass
- Thermostatic cartridge: French Vernet
- Temperature control: Lower rotary handle
- Outlet controls: Two Neoperl push-button controls with volume adjustment
- Number of outlets: 2
- Simultaneous operation: Yes
- Flow rate: Up to 24 L/min at 3 bar
- Trim plate material: SUS304 stainless steel
- Trim plate shape: Round
- Trim plate diameter: Ø165 mm
- Outlet control centres: 50 mm
- Vertical control spacing: 65 mm
- Rough-in type: Half-box built-in system
- Installation depth: 80–103 mm
- External projection: 41 mm
- Water inlets: Hot left, cold right
- Outlet positions: Outlet 1 right, outlet 2 top
- Connections: G1/2
- Built-in part: Included
- Installation: Concealed wall-mounted
- Packaging: Box with EPE foam
Why Aquavit for Basin Faucet Programs
OEM/ODM Manufacturing
Flexible OEM/ODM support for your brand projects.
Custom Finishes
Multiple finish options to match your market needs.
Inspection Support
Quality control and inspection support for consistent supply.
Technical Documentation
Complete technical files to support your project development.
Working on a Project? Let's Build It Together.
Competitive pricing and expert support for basin faucet projects.
Inquire for Project/OEMFrequently Asked Questions
How does the TSVC thermostatic shower valve operate?
The lower handle controls the water temperature through a French Vernet thermostatic cartridge. Each upper Neoperl push-button control independently turns one shower outlet on or off and adjusts its water flow by rotation.
What is the difference between the TSVC and TSVB series?
The TSVB series uses separate handles for temperature and overall flow control, while its push buttons control the individual outlets. On the TSVC series, the lower handle controls temperature only, while each upper push-button control independently operates and adjusts the flow of its corresponding outlet.
Can the water flow be adjusted from each push button?
Yes. Press the control to turn the corresponding outlet on or off, then rotate it to adjust the water flow. Each outlet can be adjusted independently.
Can multiple shower outlets operate at the same time?
Yes. Each outlet is controlled independently, allowing one or multiple shower functions to operate simultaneously when the water pressure and supply capacity are sufficient.
What type of thermostatic cartridge does the valve use?
The TSVC series uses a French Vernet thermostatic cartridge for stable and precise temperature control. A 38°C safety stop helps prevent accidental selection of excessively hot water.
What is the flow rate of the TSVC shower valve?
The flow rate is approximately 24 L/min. Actual performance may vary depending on water pressure, pipe size, outlet configuration and the number of outlets operating simultaneously.
What is the required installation depth?
The recommended rough-in installation depth is 80–103 mm, measured to the finished wall surface. The finished wall must remain within the marked installation range.
Can the rough-in valve be installed before the trim is selected?
Yes. The rough-in valve has no decorative finish and can be installed during the plumbing stage. A compatible trim design and finish can be selected later, provided the number of outlets and control configuration match the rough-in valve.
What if the rough-in valve is installed too deep?
Extension components are available for installations beyond the standard depth range. Please contact our sales team with the model number and actual installation depth to confirm the correct extension kit.
