Product Description

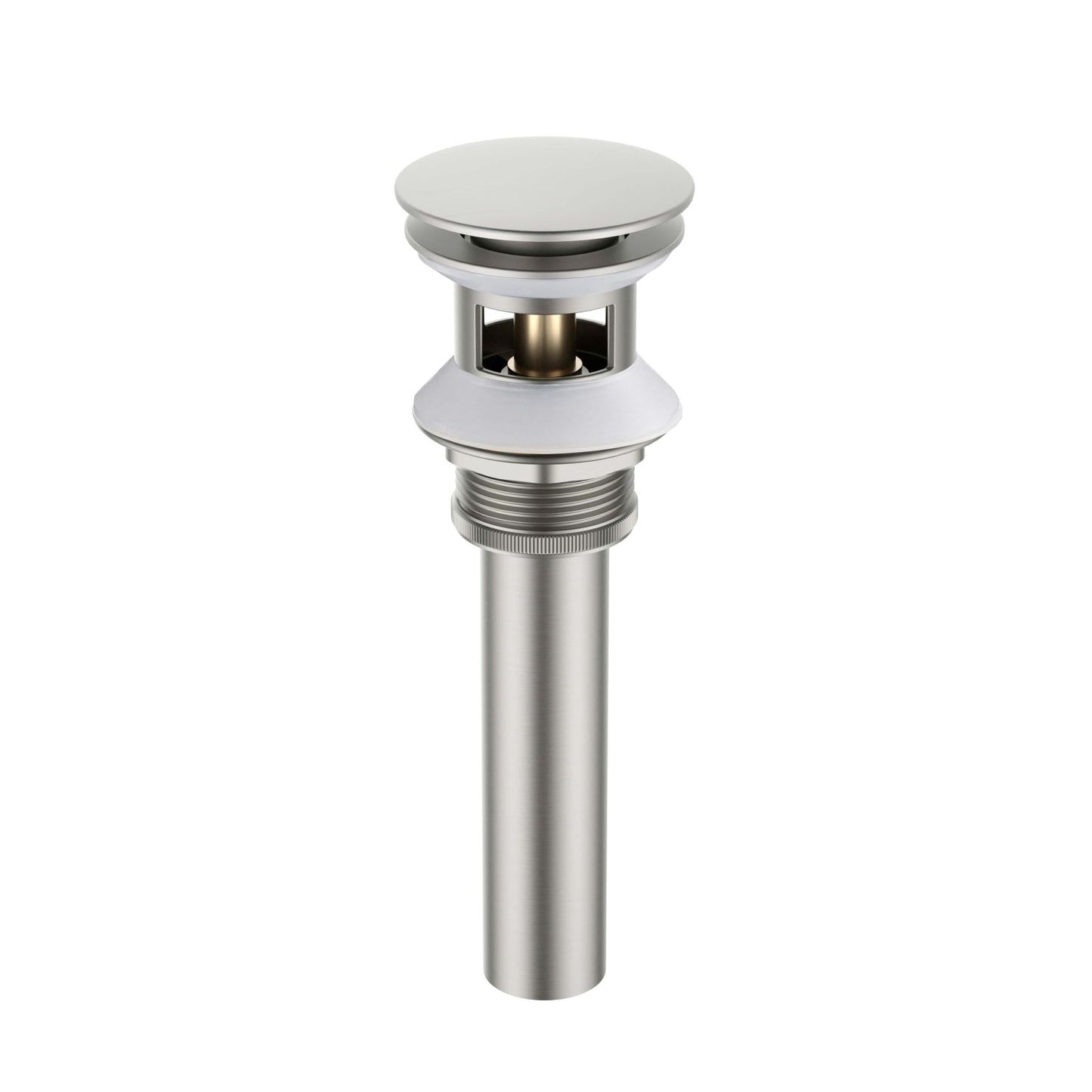

The PW0023 is the stainless steel version of the PW01 push-button pop-up drain, designed for bathroom sinks with an overflow. Its stainless steel body and oversized Ø66 mm cover provide broad coverage around the drain opening while offering reliable corrosion resistance for residential and commercial bathroom applications.
Pressing the top cover opens or closes the drain without requiring a lift rod. The threaded body supports a 35–62 mm installation range, while sealing washers and a locking nut secure the drain beneath the basin. A 125 mm stainless steel tailpiece provides a durable G1-1/4 connection to compatible bottle traps and P-traps.
Product Features
- Stainless Steel Construction – Provides dependable corrosion resistance and long-term durability for bathroom sink drainage.
- Designed for Sinks with Overflow – Integrated overflow openings connect the basin overflow channel to the drainage system.
- Oversized Ø66 mm Push Cover – Provides broad coverage around the sink opening and a coordinated finished appearance.
- Smooth Push-Button Operation – Press once to close the drain and press again to release water without requiring a lift rod.
- Stainless Steel Tailpiece – The 125 mm extension provides a durable connection to compatible under-sink drainage components.
- G1-1/4 Drain Connection – Connects with compatible bottle traps, P-traps and bathroom sink drainage systems.
- 35–62 mm Installation Range – Accommodates compatible basin and countertop installation thicknesses.
- Secure Threaded Installation – Sealing washers and a locking nut support a stable, watertight connection when correctly installed.
- Serviceable Drain Mechanism – The upper push-button assembly can be accessed for routine cleaning and maintenance.
- Suitable for Multiple Projects – Applicable to residential bathrooms, hotels, apartments and commercial developments.
- Coordinated Finish Options – Available in multiple finishes to match Aquavit faucets, traps and bathroom accessories.
- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Push-button pop-up drain
- Overflow Configuration: With overflow
- Main Body Material: Stainless steel
- Cover Material: Stainless steel
- Tailpiece Material: Stainless steel
- Cover Diameter: 66 mm
- Operation: Push-to-open and push-to-close
- Drain Connection: G1-1/4
- Installation Range: 35–62 mm
- Overall Height: 210 mm
- Drain Body Height: 78 mm
- Tailpiece Length: 125 mm
- Tailpiece Diameter: 32 mm
- Compatible Sink: Bathroom sink with overflow
- Installation: Threaded body with sealing washers and locking nut
- Included Components: Pop-up drain body, push cover, sealing washers, locking nut and stainless steel tailpiece
- Application: Residential, hospitality and commercial bathroom sinks
