Product Description

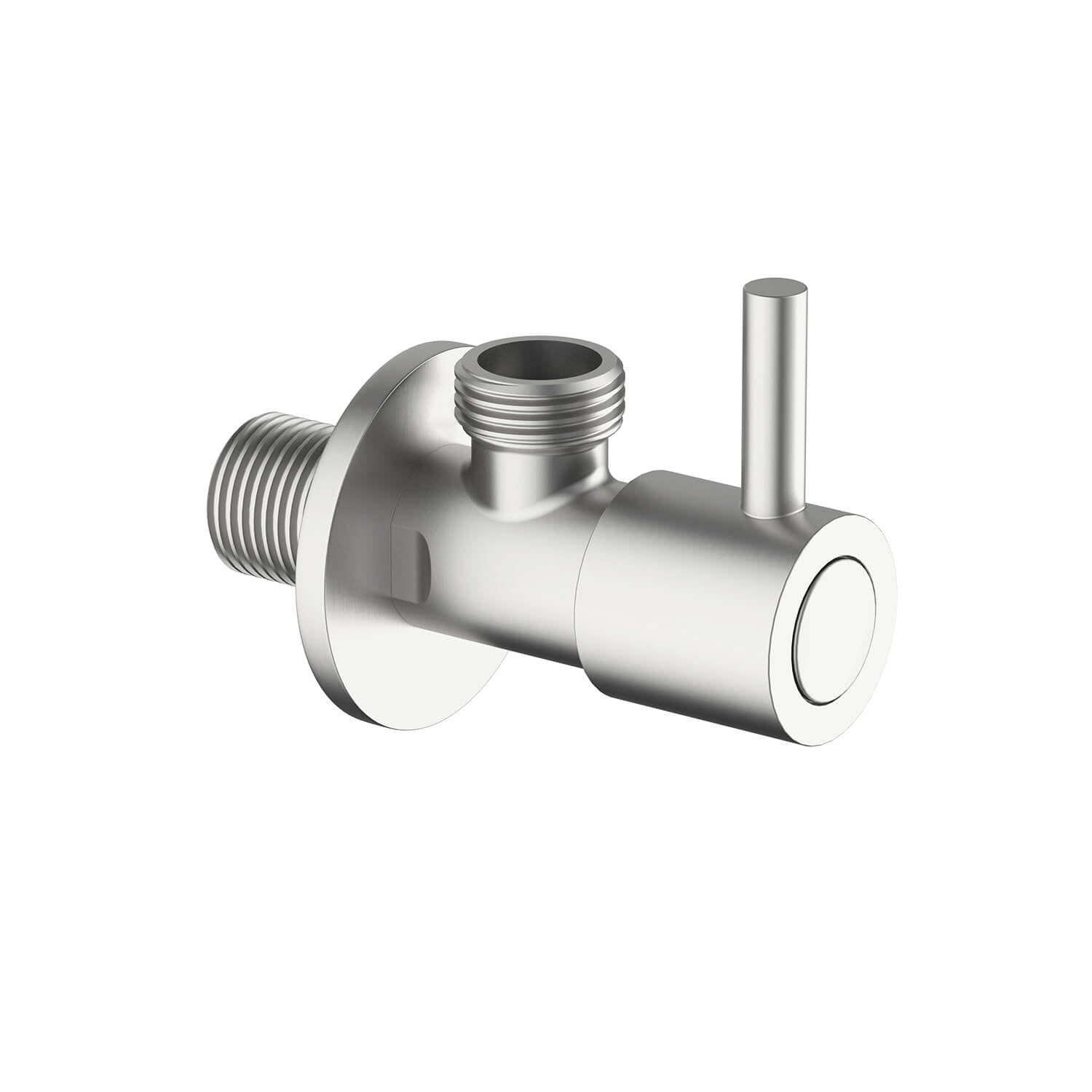

The AV01 is a wall-mounted angle stop valve designed to provide local water shutoff for compatible bathroom fixtures and plumbing connections. Its 90-degree outlet configuration redirects the water supply from the wall toward the connected fixture or hose.
The solid brass body provides strength and long-term reliability, while the ceramic cartridge delivers smooth and dependable water control. A slim zinc alloy lever offers convenient operation without requiring a large handle clearance. Both the inlet and outlet use G1/2 male threads for connection with compatible plumbing components.
Product Features
- Solid Brass Valve Body – Provides strength and long-term reliability for bathroom water-supply installations.
- Ceramic Cartridge – Supports smooth operation and dependable shutoff control.
- Local Water Shutoff – Allows the connected fixture or hose to be isolated for maintenance without shutting off the building’s main water supply.
- 90-Degree Outlet Configuration – Redirects the wall water supply toward a compatible fixture connection or hose.
- Dual G1/2 Male Connections – Uses G1/2 threads at both the wall inlet and fixture outlet.
- Slim Zinc Alloy Lever – Provides convenient control with a compact handle design.
- Compact Wall-Mounted Design – Fits neatly beside toilets, washbasins and other bathroom fixtures.
- Matching Round Flange Included – Conceals the wall opening for a clean, finished installation.
- Versatile Bathroom Application – Suitable for compatible faucets, toilets, bidet sprayers and other bathroom water-supply connections.
- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Angle stop valve
- Body Material: Solid brass
- Cartridge: Ceramic cartridge
- Handle Material: Zinc alloy
- Handle Style: Slim lever
- Inlet Connection: G1/2 male thread
- Outlet Connection: G1/2 male thread
- Flow Direction: 90-degree angle
- Overall Dimensions: 50 × 86 × 55 mm
- Overall Projection: 86 mm
- Overall Height: 55 mm
- Valve Body Diameter: 28 mm
- Wall Flange Diameter: 50 mm
- Wall Thread Length: 24 mm
- Installation: Wall mounted
- Included Component: Round wall flange
- Application: Local water shutoff for compatible bathroom fixtures and hoses
