Product Description

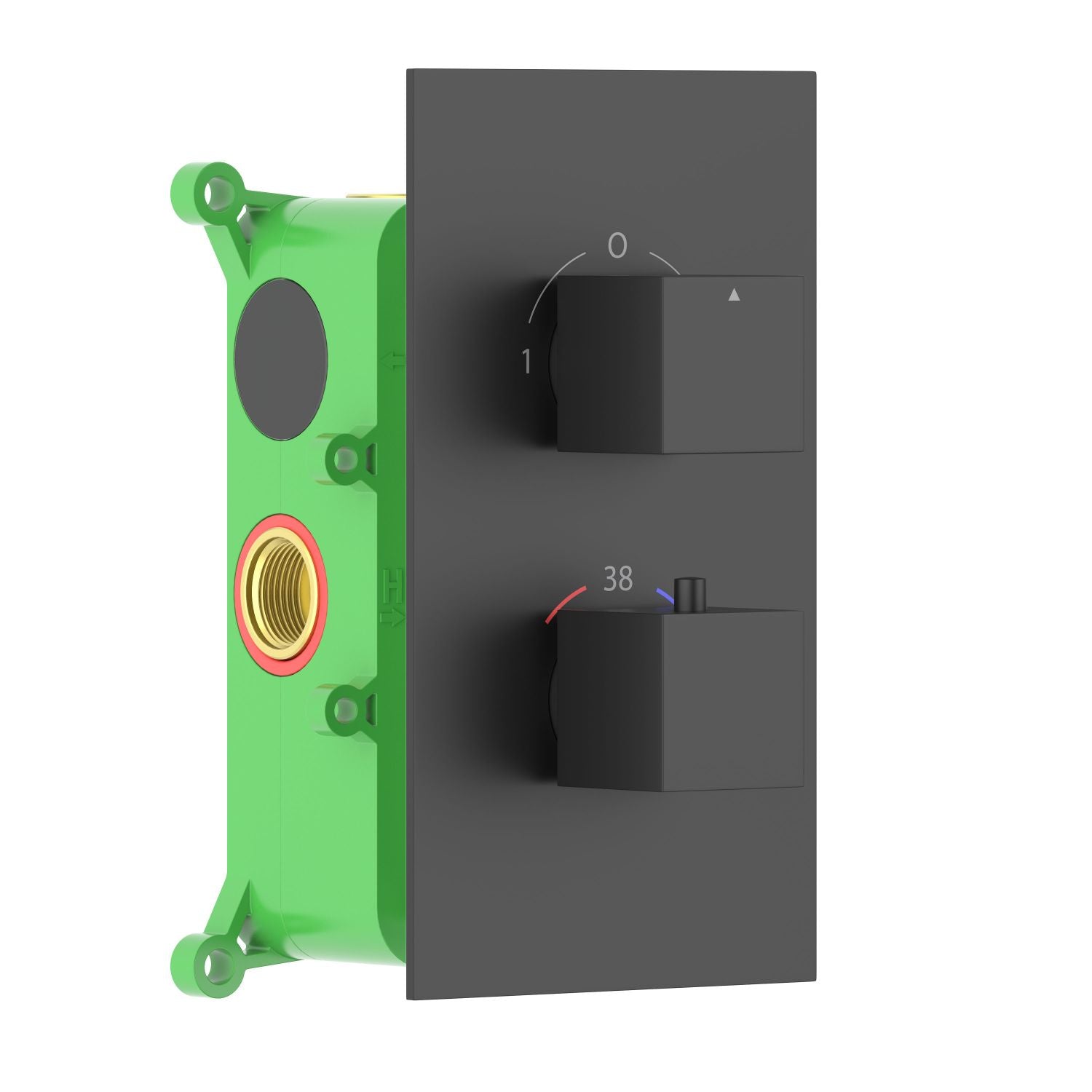

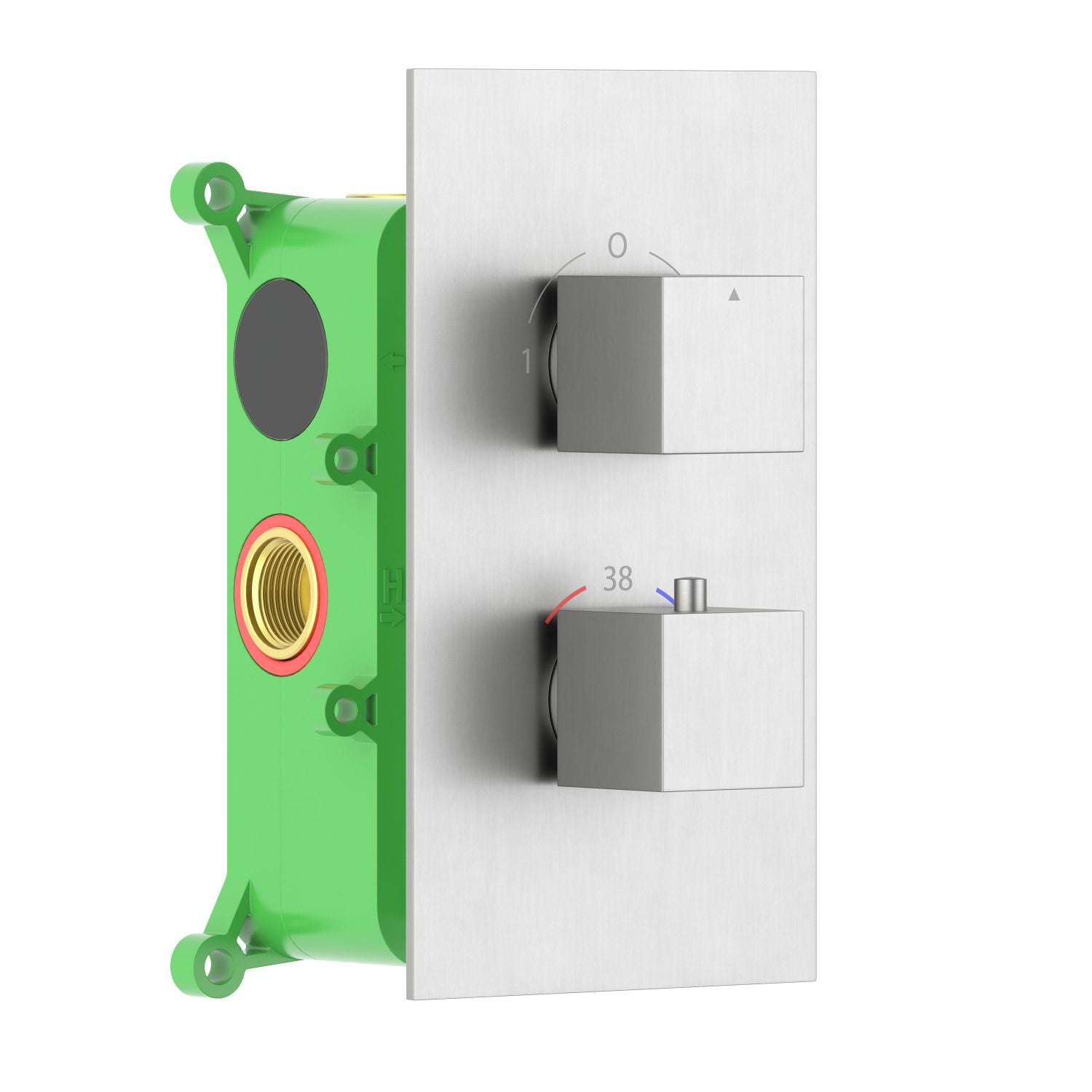

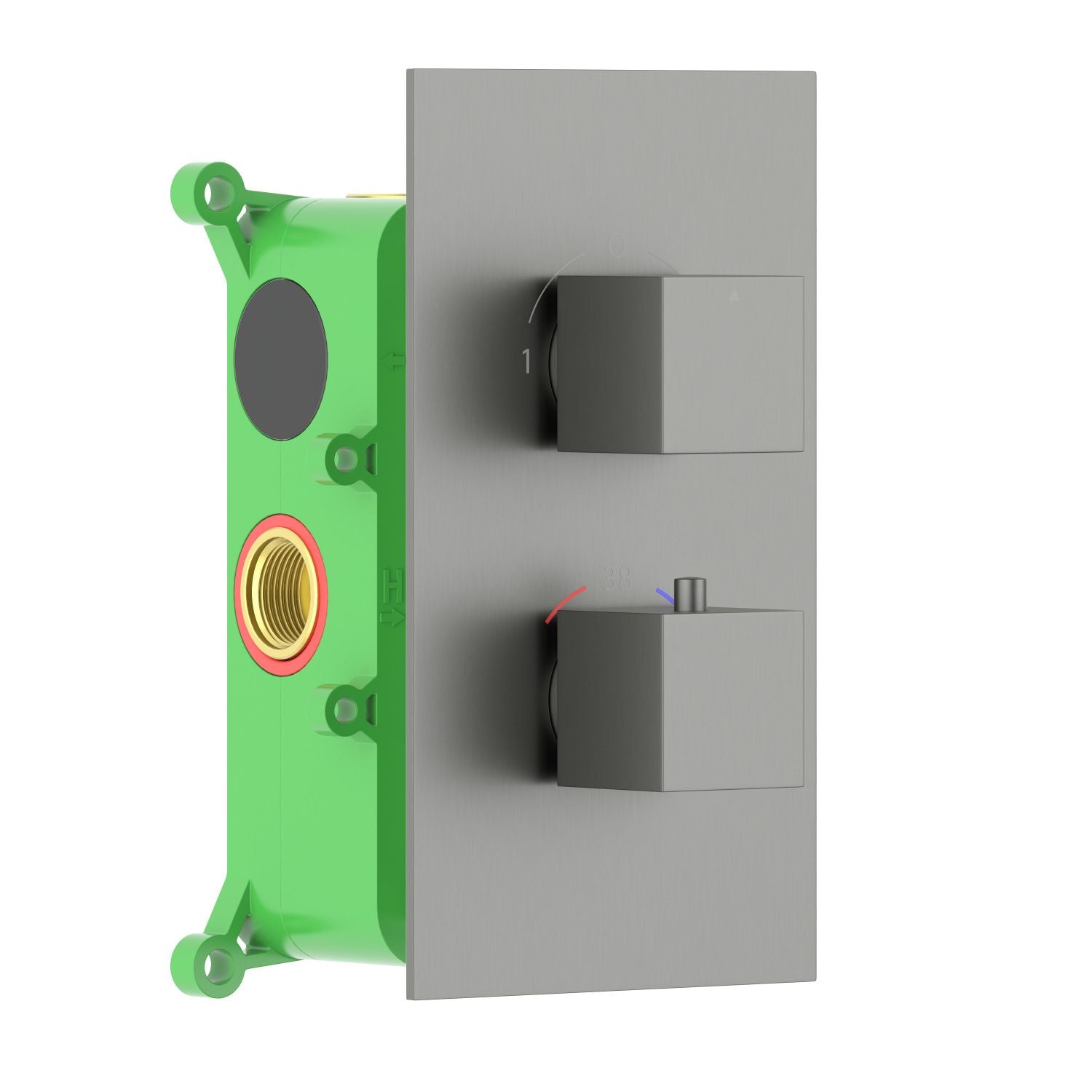

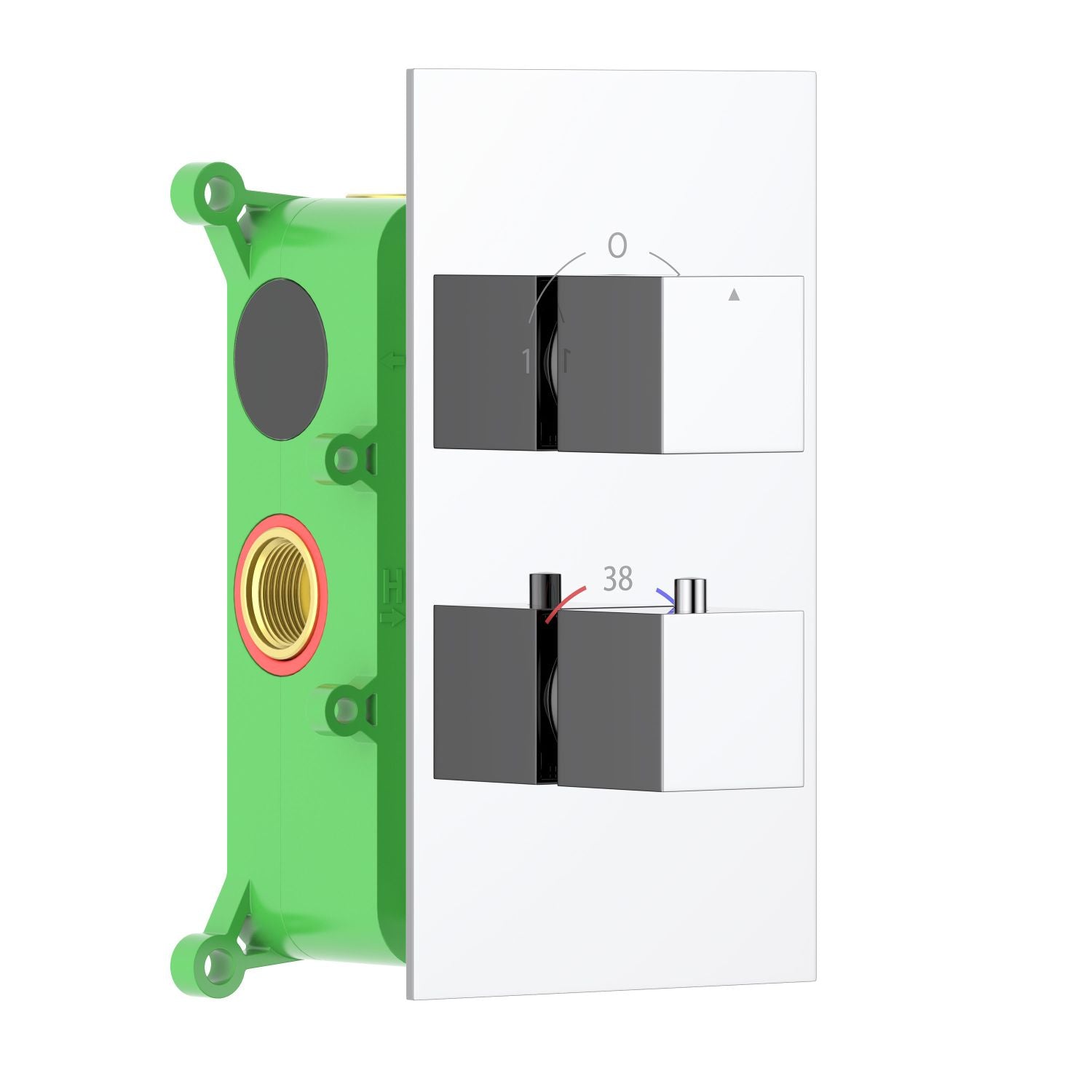

The VT0852101 is a complete 1-function concealed thermostatic shower valve system that includes the brass rough-in valve, protective installation box, SUS304 trim plate and brass control handles.
A French Vernet thermostatic cartridge maintains the selected water temperature, while the ceramic control cartridge provides integrated water flow and shut-off operation. The dedicated controls allow users to turn the water on or off without changing the preset temperature.
G3/4" inlet connections support the higher water volume required by modern shower installations. The concealed valve is universal across available trim finishes, allowing the exterior finish to be selected or changed without replacing the installed rough-in valve.
This complete set is designed for a single shower outlet, such as an overhead shower, hand shower or other individual shower function.
Features:
- Solid Brass Valve Body – The concealed valve is constructed from brass for pressure resistance, dimensional stability and long-term reliability behind the wall.
- French Vernet Thermostatic Cartridge – Maintains the selected outlet temperature and responds to changes in the hot or cold water supply.
- Ceramic Flow-Control Cartridge – Provides reliable water control with an integrated on/off function for the connected shower outlet.
- Independent Temperature and Flow Controls – Water can be turned on or off without changing the preset thermostatic temperature.
- Single-Function Shower Control – Designed to operate one connected shower outlet, such as an overhead shower or hand shower.
- G3/4" High-Volume Connections – Larger inlet connections support increased water delivery for concealed shower applications.
- 3 mm SUS304 Trim Plate – The stainless steel exterior plate provides rigidity, corrosion resistance and clean coverage around the valve opening.
- Brass Control Handles – Durable brass handles provide separate control of water flow and thermostatic temperature.
- Protective Rough-In Box – Helps position and protect the concealed valve during wall construction and installation.
