Key Features
Solid Cast-Brass Valve Body
Solid cast-brass construction provides reliable strength, pressure resistance, and long-term durability.
French Vernet Thermostatic Cartridge
Maintains the selected water temperature within ±1.5°C for stable and comfortable showering.
G3/4 High-Flow Connections
G3/4 connections support stable, high-volume water delivery across TSV5 configurations, from single-outlet valves to multi-outlet shower systems.
TSV5 Compatible Rough-In Valve
The rough-in valve can be installed before the final trim finish and handle design are selected. Compatible TSV5 trims are available for different project requirements.
Integrated Check Valves & Service Stops
Check valves help prevent backflow, while service stops allow easier inspection and maintenance.
Flexible Concealed Installation
The fully enclosed box supports solid and hollow wall installation, with multiple mounting points, dual spirit levels, and an adjustable installation depth of 81–103 mm.
Product Description

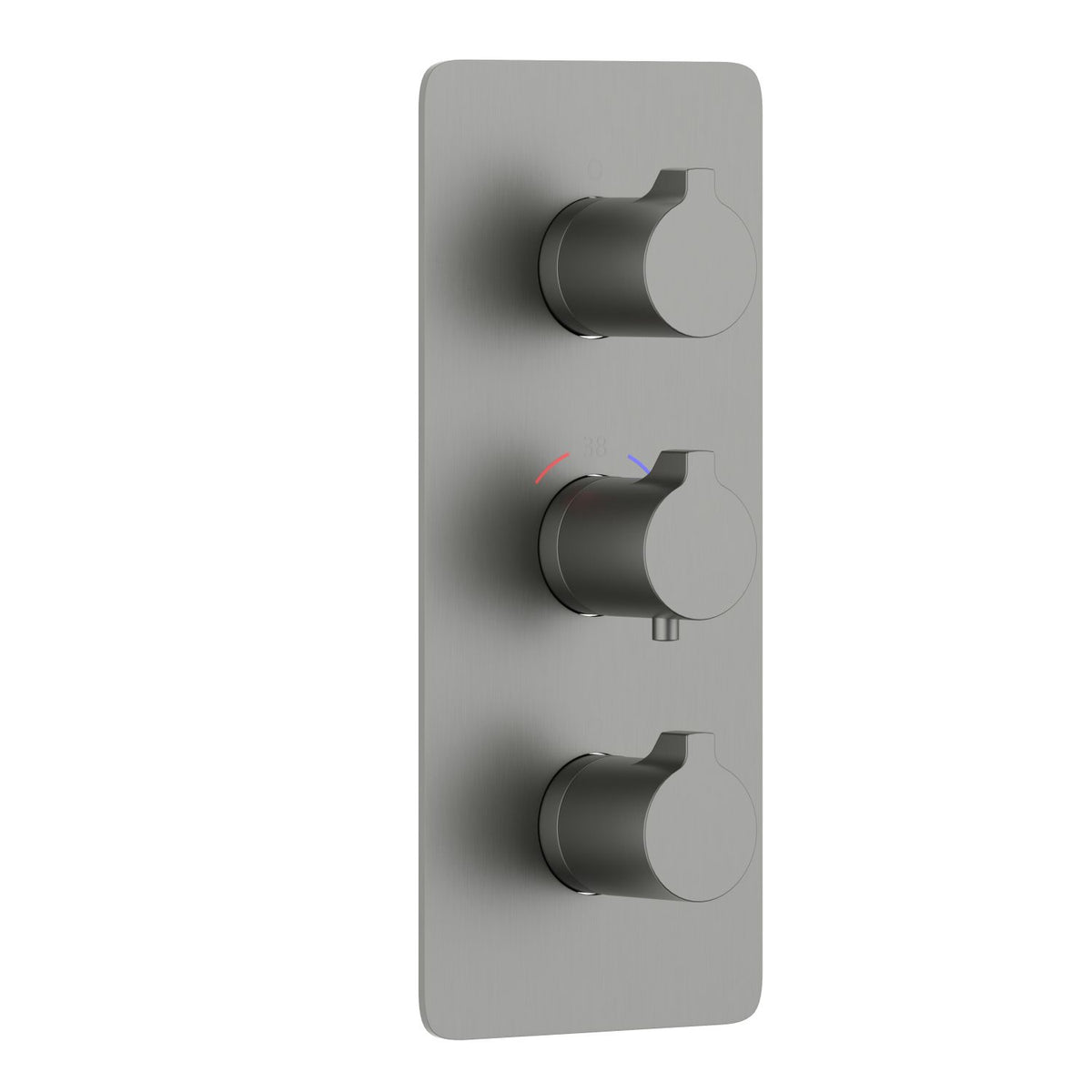

The Aquavit PH0953X01 is a three-control trim kit designed for compatible Aquavit TSV5 concealed thermostatic shower valves with two to six shower functions. It features a 3 mm rectangular SUS304 stainless steel trim plate and three round solid brass handles.
The center handle adjusts the thermostatic water temperature, while the upper and lower handles operate the connected shower outlets according to the matching rough-in valve configuration. Function markings are customized for two-, three-, four-, five- or six-function applications so each trim version corresponds clearly with its connected outlets.
This product includes the exterior trim plate and three handles only. The compatible thermostatic rough-in valve is sold separately.
Product Features
- SUS304 Stainless Steel Trim Plate: The 120 × 280 × 3 mm rectangular plate provides corrosion resistance, structural rigidity and coverage for the concealed valve opening.
- Round Solid Brass Handles: All three handles are constructed from solid brass for strength, durability and reliable everyday operation.
- Dedicated Temperature Control: The center handle adjusts the thermostatic water temperature independently of shower function operation.
- Separate Upper and Lower Function Controls: The upper and lower handles operate their respective shower outlets according to the matching rough-in valve configuration.
- Two- to Six-Function Compatibility: Available with function markings for compatible two-, three-, four-, five- or six-function thermostatic shower valves.
- Valve-Specific Function Markings: Symbols on the function handles correspond to the outlet configuration of the selected rough-in valve.
- Three-Control Vertical Layout: The vertically arranged controls clearly separate temperature adjustment from upper and lower shower function operation.
- TSV5 Rough-In Compatibility: Designed for a compatible Aquavit TSV5 three-control thermostatic rough-in valve with the matching function configuration.
- Trim Kit Only: Includes the trim plate and three handles; the thermostatic rough-in valve is sold separately.
Product Details
- Product type: Thermostatic shower valve trim kit
- Valve series: TSV5
- Compatible functions: 2, 3, 4, 5 or 6
- Number of controls: 3
- Temperature control: Center handle
- Function controls: Upper and lower handles
- Function markings: Customized to match the selected rough-in valve configuration
- Trim plate material: SUS304 stainless steel
- Trim plate shape: Rectangular
- Trim plate dimensions: 120 × 280 × 3 mm
- Handle material: Solid brass
- Handle style: Round
- Handle arrangement: Vertical
- Installation: Concealed wall-mounted
- Compatible rough-in valve: Aquavit TSV5 three-control thermostatic rough-in valve
- Rough-in valve: Sold separately
- Included components: Trim plate and three handles
Why Aquavit for Concealed Shower Systems Programs?
OEM/ODM Manufacturing
Flexible OEM/ODM support for your brand projects.
Custom Finishes
Multiple finish options to match your market needs.
Inspection Support
Quality control and inspection support for consistent supply.
Technical Documentation
Complete technical files to support your project development.
Working on a Project? Let's Build It Together.
Competitive pricing and technical support for concealed shower systems.
Inquire for Project/OEMFrequently Asked Questions
What is the TSV5 thermostatic shower valve body made of?
The TSV5 features a solid cast-brass valve body for reliable strength, pressure resistance, and long-term durability.
What type of thermostatic cartridge does it use?
It uses a French Vernet thermostatic cartridge that maintains the selected water temperature within ±1.5°C for stable and comfortable showering.
What is the flow rate of the valve?
At 3 bar, the upper outlet delivers approximately 22.5 L/min and the lower outlet approximately 26.8 L/min when tested individually. Actual flow may vary depending on water pressure and system configuration.
What are the installation requirements?
The valve uses G3/4 inlet and outlet connections and requires an installation depth of approximately 81–103 mm. Built-in horizontal and vertical spirit levels help ensure accurate alignment.
Can it be installed in both solid and hollow walls?
Yes. The fully enclosed rough-in box includes multiple mounting points, allowing secure concealed installation in both solid and hollow wall constructions.
Does the valve include check valves and service stops?
Yes. Integrated check valves help prevent crossflow, while the built-in service stops allow the water supply to be isolated for inspection and maintenance.
Is the rough-in valve universal, and does it come in different finishes?
The same TSV5 rough-in valve can be paired with multiple trim finishes and handle designs within the corresponding outlet configuration.
What if the rough-in valve is installed too deep?
Extension kits are available for installations that exceed the standard depth range. Please contact our sales team with the valve model and actual installation depth to confirm the correct extension kit.
