Product Description

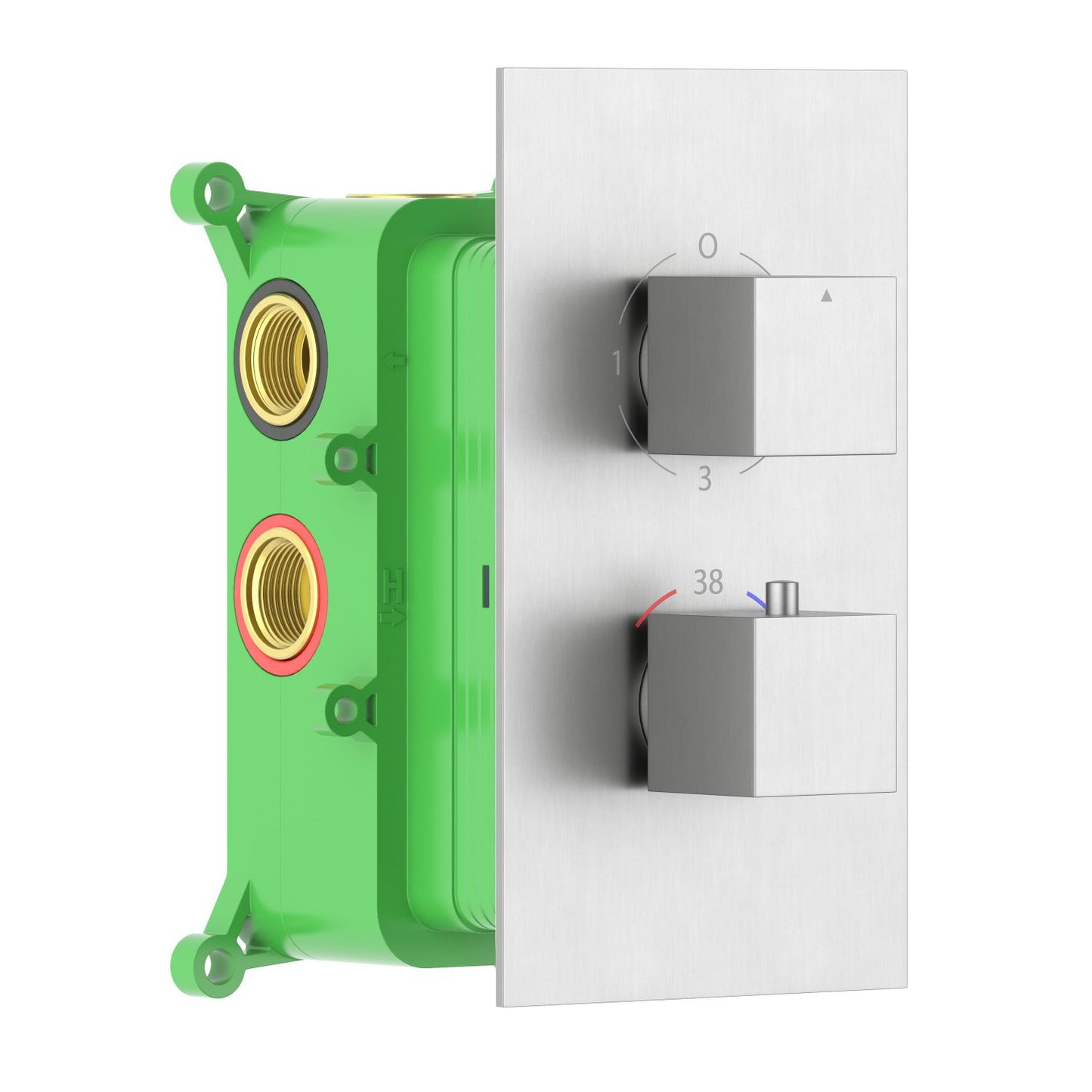

The VT0852301 is a complete 3-function concealed thermostatic shower valve system with a brass rough-in valve, protective installation box, French Vernet thermostatic cartridge and ceramic diverter with integrated on/off control.
It includes a 3 mm SUS304 stainless steel trim plate and brass handles. Standard G3/4" water inlets support high-volume delivery, while the 75–107 mm installation depth accommodates different finished-wall conditions.
Features:
- Solid Brass Valve Body – The concealed valve is constructed from brass for pressure resistance, dimensional stability and long-term reliability behind the wall.
- French Vernet Thermostatic Cartridge – Maintains the selected water temperature and responds to changes in the hot or cold water supply.
- Ceramic Cartridge Diverter – Provides reliable control of three connected shower outlets.
- Integrated On/Off Function – Each shower function can be switched on or off directly through the corresponding control.
- Independent Temperature and Function Controls – Shower functions can be operated without changing the preset thermostatic temperature.
- 3-Function Shower Control – Designed to control three connected shower outlets according to the selected shower system configuration.
- High-Flow Water Delivery – Delivers 23.9 L/min from the upper outlet, 19 L/min from the left outlet and 24 L/min from the right outlet at 3 bar.
- Standard G3/4" Water Inlets – Large inlet connections support the water volume required for multi-function shower systems.
- 3 mm SUS304 Trim Plate – The stainless steel exterior plate provides rigidity, corrosion resistance and clean coverage around the valve opening.
- Brass Control Handles – Durable brass handles provide separate control of water temperature and shower functions.
- Protective Rough-In Box – Helps position and protect the concealed valve during wall construction and installation.
-
Adjustable Installation Depth – Supports installation depths from 75 to 107 mm for different wall structures and finished surfaces.
