Product Description

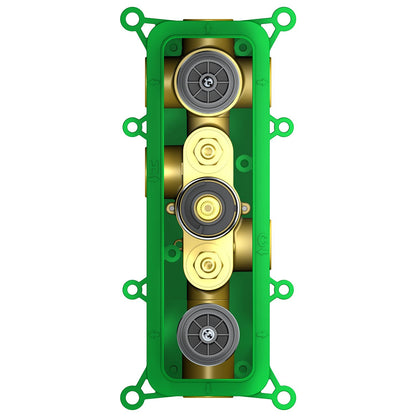

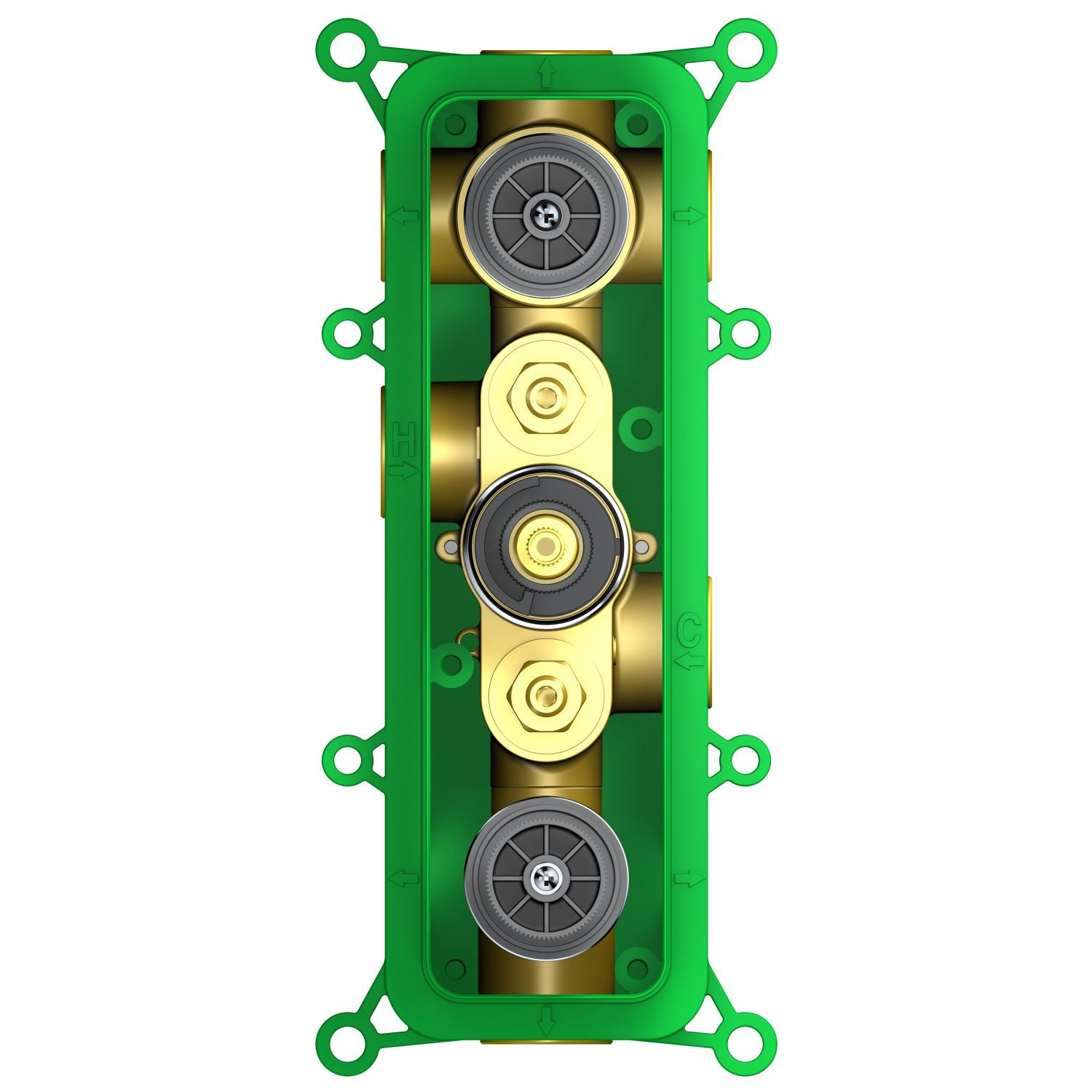

The TSV53402 is a 4-outlet thermostatic rough-in shower valve designed to control four shower functions through two separate operating controls. Its solid brass cast body incorporates a French Vernet CA43 thermostatic cartridge in the center, a 3-way ceramic diverter cartridge above and a single-function ceramic shut-off cartridge below.
The upper control switches between three outlets, operating one selected upper function at a time. The lower control independently turns the fourth outlet on or off. Any selected upper outlet can operate simultaneously with the independently controlled bottom outlet, allowing two shower functions to run together while maintaining the preset water temperature.
When tested individually at 3 bar, the selected upper outlet delivers 25.7 L/min and the bottom outlet delivers 26.8 L/min. Standard 3/4-inch inlet and outlet connections support the water delivery requirements of multi-function shower systems.

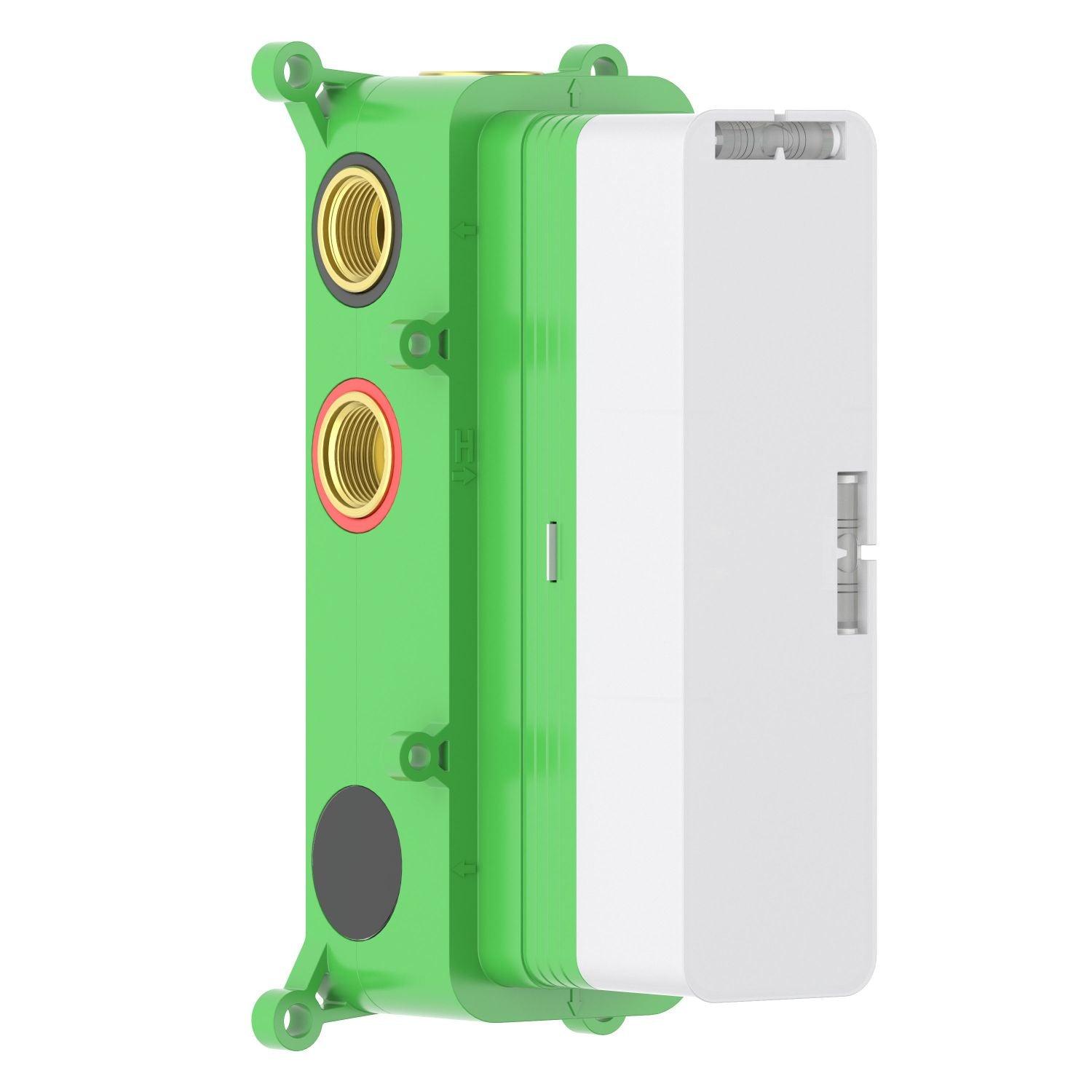

The fully enclosed rough-in box protects the valve during installation and includes cutting reference lines and a built-in bubble level for accurate positioning. Its adjustable installation depth ranges from 75 to 107 mm.
The universal valve platform is compatible with multiple Aquavit trim designs and finish options.
Trim plate, handles and other exterior trim components are not included.
Features
- Solid Brass Valve Body – The cast brass construction provides strength, pressure resistance and long-term reliability for concealed shower installations.
- French Vernet Thermostatic Cartridge – The centrally positioned Vernet CA43 cartridge regulates the mixed-water temperature when inlet pressure or water temperature changes.
- Four-Outlet Configuration – Controls four connected shower functions through one 3-way diverter and one independent shut-off control.
- Upper 3-Way Diverter Control – The upper ceramic cartridge switches between three shower outlets, operating one selected upper function at a time.
- Independent Bottom Outlet Control – The lower single-function ceramic cartridge independently turns the fourth shower outlet on or off.
- Simultaneous Two-Function Operation – Any selected upper outlet can operate together with the independently controlled bottom outlet.
- Integrated Shut-Off Functions – Both operating controls allow their connected shower functions to be turned off without changing the preset temperature.
- High-Flow Performance – The selected upper outlet delivers 25.7 L/min and the bottom outlet delivers 26.8 L/min at 3 bar when tested individually.
- Standard 3/4-Inch Connections – The 3/4-inch inlet and outlet threads support reliable water delivery for multi-outlet shower systems.
- Integrated Check Valves – Built-in check valves help prevent crossflow between the hot and cold water supply lines.
- Adjustable Installation Depth – The 75–107 mm rough-in range accommodates different wall constructions and finished-wall thicknesses.
- Fully Enclosed Rough-In Box – The installation box protects the valve body and internal components during wall construction.
- Accurate Installation Alignment – Cutting reference lines and a built-in bubble level assist with depth setting and horizontal alignment.
- Universal Trim Compatibility – The concealed valve platform supports multiple Aquavit trim designs and finish options.
-
Protective EPE Packaging – The valve and rough-in box are packed with EPE foam to reduce transportation and handling damage.
