Key Features

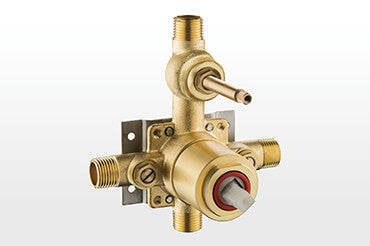

Solid Brass Casting Rough Valve
Durable cast-brass construction provides reliable strength and long-term performance.
40 mm Pressure-Balance Cartridge
Yizhan 40 mm pressure-balance cartridge helps maintain a stable shower temperature during pressure fluctuations.
Integrated Check Valves & Service Stops
Built-in check valves help prevent reverse flow, while integral service stops simplify maintenance.

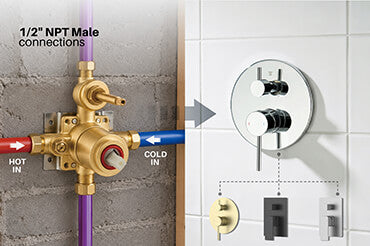

1/2" NPT Connections & Flexible Trim Options
Standard 1/2" NPT connections with multiple compatible Aquavit trim designs and finishes.

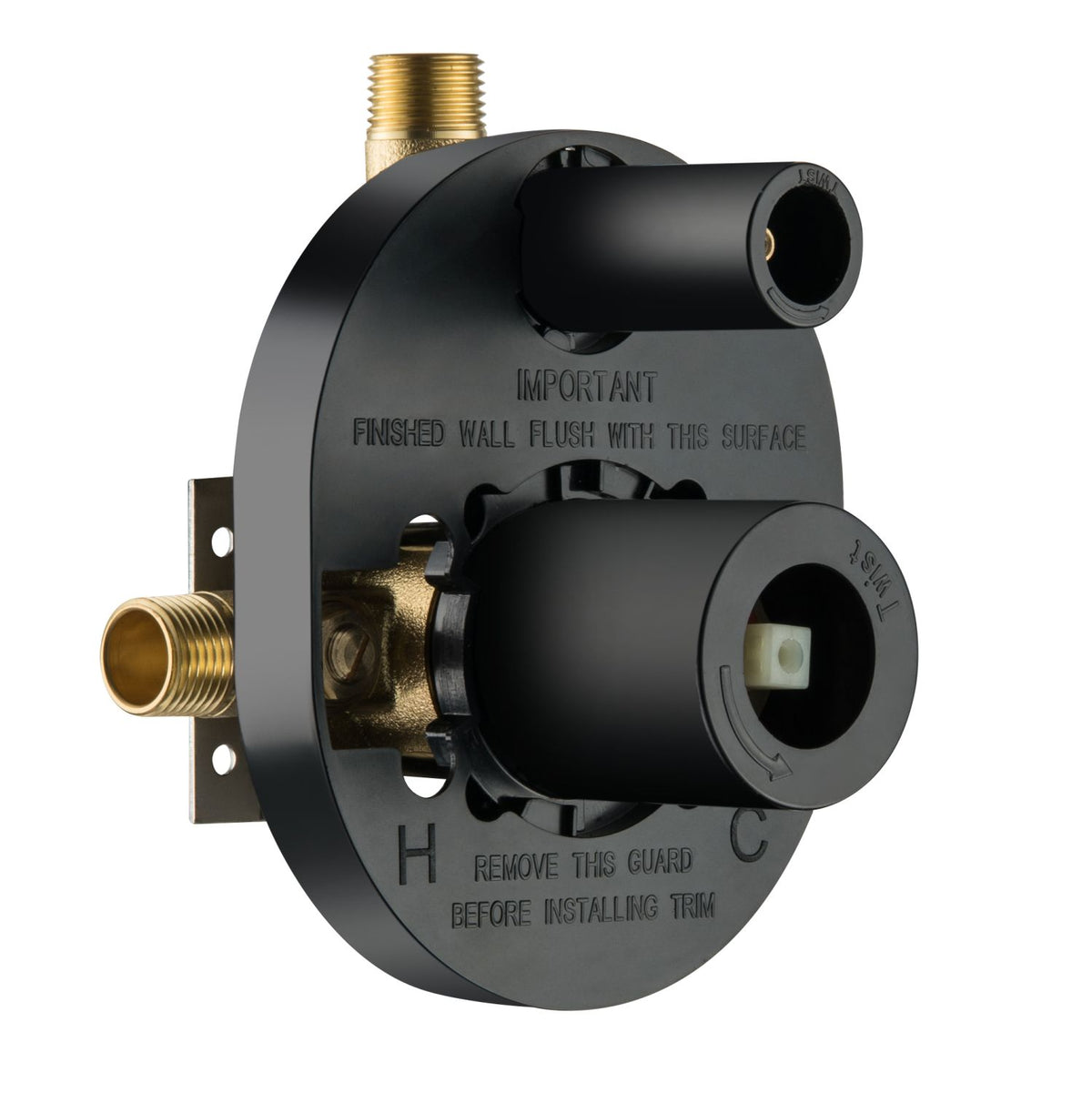

Protective Plaster Guard
The plaster guard protects the valve during rough-in and helps define the required wall opening and installation depth.

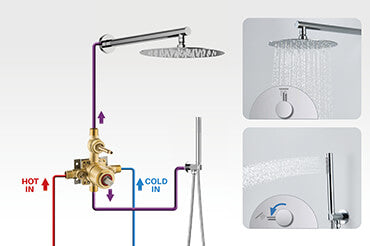

Two-Outlet Rotary Diverter
Rotate the diverter to select between two separate shower outlets.
Product Description
The Aquavit PBV42201 is a two-outlet pressure-balancing rough-in valve designed for concealed shower installations. It combines a Taiwan Yizhan 40 mm pressure-balancing cartridge with a separate ceramic cartridge diverter for selecting between the upper and lower outlets.
Integrated hot and cold service stops simplify installation, pressure testing and future maintenance. The finish-independent valve can be installed before the compatible trim finish is selected.
Product Features
- Solid Brass Body: Provides a durable and corrosion-resistant concealed waterway.
- Taiwan Yizhan Cartridge: The 40 mm pressure-balancing cartridge supports stable water pressure and reliable operation.
- Ceramic Cartridge Diverter: Routes water between the upper and lower shower outlets.
- Two-Outlet Configuration: Supports two shower functions through a single concealed valve.
- High-Flow Performance: Delivers 4.5 GPM through the upper outlet and 4.6 GPM through the lower outlet at 60 PSI.
- Integrated Shut-Offs: Built-in hot and cold service stops simplify installation, testing and maintenance.
- Standard Connections: Four 1/2-inch MNPT ports support standard North American shower pipework.
- Finish-Independent Rough-In: The concealed valve can be installed before the compatible trim finish is selected.
- ABS Dust Plate: Includes a black construction plate to protect the valve during wall installation.
- Mounting Bracket: Integrated bracket provides a stable fixing point inside the wall.
- Protective Packaging: Packed in a box with EPE foam to reduce damage during handling and shipping.
Product Details
- Product type: Two-outlet pressure-balancing rough-in valve
- Body material: Solid brass
- Main cartridge: Taiwan Yizhan 40 mm pressure-balancing cartridge
- Diverter cartridge: Ceramic
- Number of outlets: 2
- Upper outlet flow rate: 4.5 GPM at 60 PSI
- Lower outlet flow rate: 4.6 GPM at 60 PSI
- Service stops: Integrated hot and cold shut-offs
- Connections: Four 1/2 in. MNPT ports
- Dust plate: Black ABS
- Mounting bracket: Included
- Installation: Concealed wall-mounted
- Overall width: 5 3/8 in. (136 mm)
- Overall height: 5 15/16 in. (151 mm)
- Overall depth: 4 3/16 in. (106 mm)
- Valve body depth: 3 1/16 in. (78 mm)
- Diverter center height: 2 11/16 in. (68 mm)
- Main cartridge diameter: 1 3/4 in. (45 mm)
- Rough-in type: Finish-independent
- Packaging: Box with EPE foam
Why Aquavit for Shower System Programs ?
OEM/ODM Manufacturing
Flexible OEM/ODM support for your brand projects.
Custom Finishes
Multiple finish options to match your market needs.
Inspection Support
Quality control and inspection support for consistent supply.
Technical Documentation
Complete technical files to support your project development.
Working on a Project? Let's Build It Together.
Competitive pricing and expert support for basin faucet projects.
Inquire for Project/OEMFrequently Asked Questions
1. How do the different PBV4 valve configurations operate?
All PBV4 models use a lift-and-turn main control. Lift the handle to turn the water on and adjust the flow, then rotate it to control the temperature.
- 1-outlet model: Operates one shower outlet without a diverter.
- 2-outlet rotary-diverter model: Rotate the diverter handle to select either outlet.
- 2-outlet push-diverter model: Press the diverter to switch between the two outlets. It automatically resets when the water is turned off.
- 3-outlet rotary-diverter model: Rotate the diverter handle to select one of three outlets.
2. Can the rough-in valve be installed before the trim finish is selected?
Yes. The PBV4 rough-in valve has no decorative finish. Once the required number of outlets and diverter type have been confirmed, the valve can be installed during the rough-in stage. The trim design and finish can be selected later from compatible PBV4 options.
3. What if the rough-in valve is installed too deep?
Extension kits are available for installations that exceed the recommended rough-in depth. Please provide the model number and actual installation depth to our sales team so we can confirm the correct extension kit.
4. What are the flow rates of the 1-, 2- and 3-outlet PBV4 valves?
Approximate flow rates tested at 60 PSI are:
- 1-outlet valve: 5.3 GPM
- 2-outlet valve: 4.6 GPM per outlet
- 3-outlet valve: 4.8 GPM per outlet
Each outlet is tested individually. Actual flow may vary depending on supply pressure, piping layout and connected shower components.
5. What are the inlet and outlet connection sizes?
PBV4 valves use standard 1/2" NPT connections for compatibility with North American plumbing systems. Always verify the piping layout and outlet configuration before installation.
6. Are PBV4 valves and compatible shower systems cUPC certified?
Yes. Aquavit’s certification coverage includes PBV4 rough-in valves, multiple trim and handle designs, and a wide range of compatible shower components.
Aquavit uses a structured model-number system that allows customers to combine certified valves, trims and shower components according to their project requirements. This makes it possible to create customized shower configurations covered by the applicable cUPC listing.
Certification applies to listed models and approved combinations. Please confirm the final model configuration with Aquavit before ordering. For details, refer to the IAPMO cUPC listing, File No. 14173, on our Certifications page.
7. Can Aquavit provide a working display solution for showrooms?
Yes. We can provide a simplified operational display solution for showrooms and dealer displays. It does not require wall cutting or installation of a complete shower system, while still allowing customers to operate the controls and understand the valve functions. Contact our sales team for display options.
8. Can the valve and trim be ordered separately?
Yes. The PBV4 rough-in valve, compatible trim and shower components can be ordered separately or supplied as a complete shower system. This supports phased project purchasing, replacement requirements and customized system configurations.
