Product Description

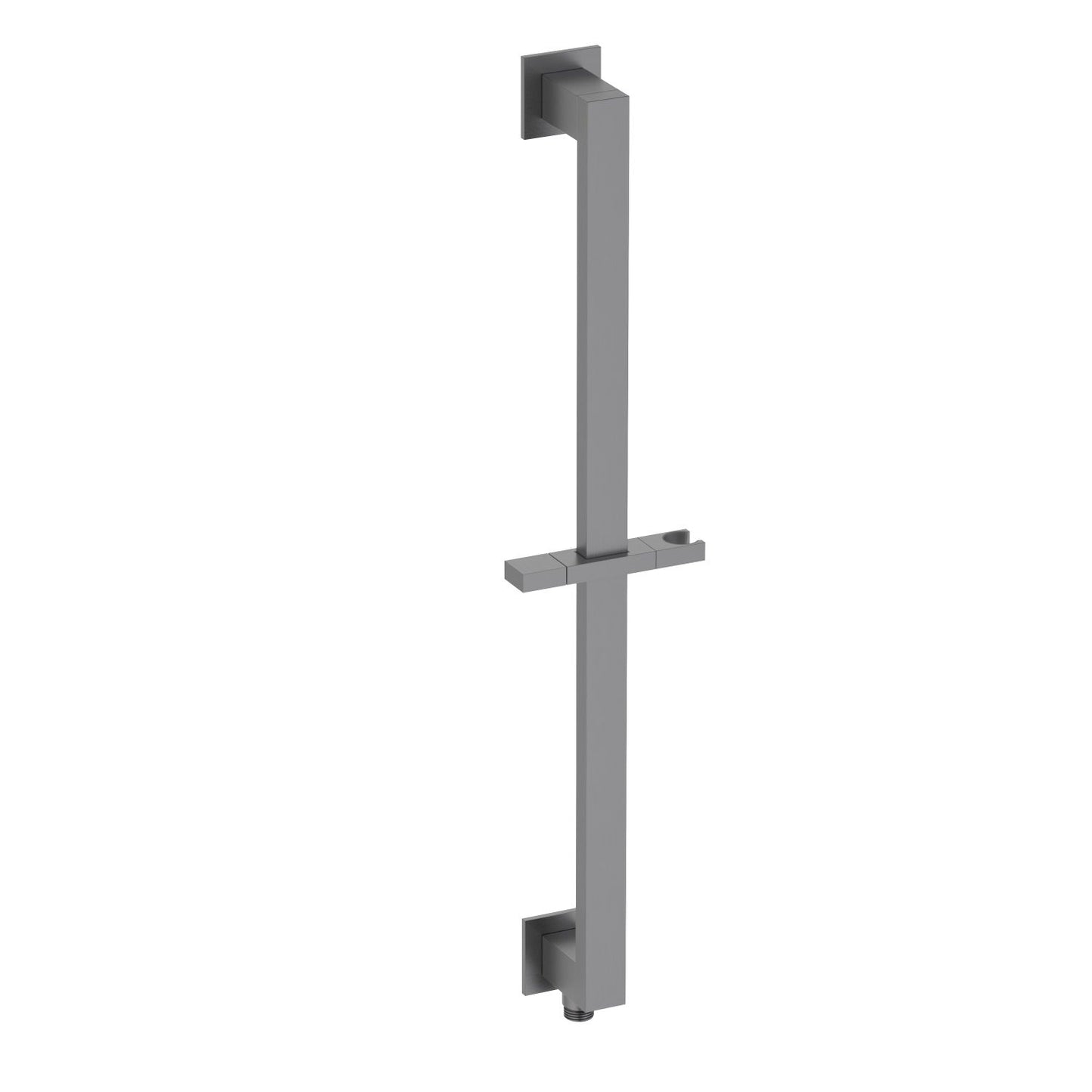

The SRS7005 is a modern square-profile slide rail designed with an integrated water outlet, combining hand shower positioning and hose connection in one coordinated unit. The integrated structure reduces the need for a separate wall elbow and creates a cleaner shower installation.
The 665 mm SUS304 stainless steel rail includes a zinc alloy hand shower holder that slides along the rail for convenient height adjustment. A 1/2-NPT wall inlet connects to the concealed water supply, while the G1/2 outlet accepts a compatible shower hose.
Product Features
- Integrated Water Outlet – Combines the slide rail and shower hose connection in one compact installation.
- SUS304 Stainless Steel Rail – Provides durable structural support for residential, hospitality and project applications.
- Adjustable Hand Shower Holder – Slides along the rail to position the hand shower at a suitable height.
- Zinc Alloy Holder – Provides reliable support for compatible hand showers.
- Standard Connections – Features a 1/2-NPT wall inlet and G1/2 hose outlet.
- 600 mm Mounting Centers – Provides a clearly defined installation layout for project planning.
- Square Contemporary Design – The rectangular rail and square wall plates coordinate with modern shower fittings.
- Space-Efficient Installation – The integrated outlet simplifies the wall layout and reduces the number of separate components.
Product Details
- Product Type: Slide rail with integrated water outlet
- Rail Material: SUS304 stainless steel
- Wall Bracket Material: SUS304 stainless steel
- Hand Shower Holder Material: Zinc alloy
- Holder Adjustment: Height adjustable
- Overall Height: 665 mm
- Mounting Center Distance: 600 mm
- Rail Size: 30 × 15 mm
- Wall Plate Size: 55 × 55 mm
- Wall Projection: 70 mm
- Holder Width: 132 mm
- Wall Inlet: 1/2-NPT
- Hose Outlet: G1/2
- Installation: Wall-mounted
- Application: Hand shower systems for residential, hospitality and project bathrooms
