Product Description

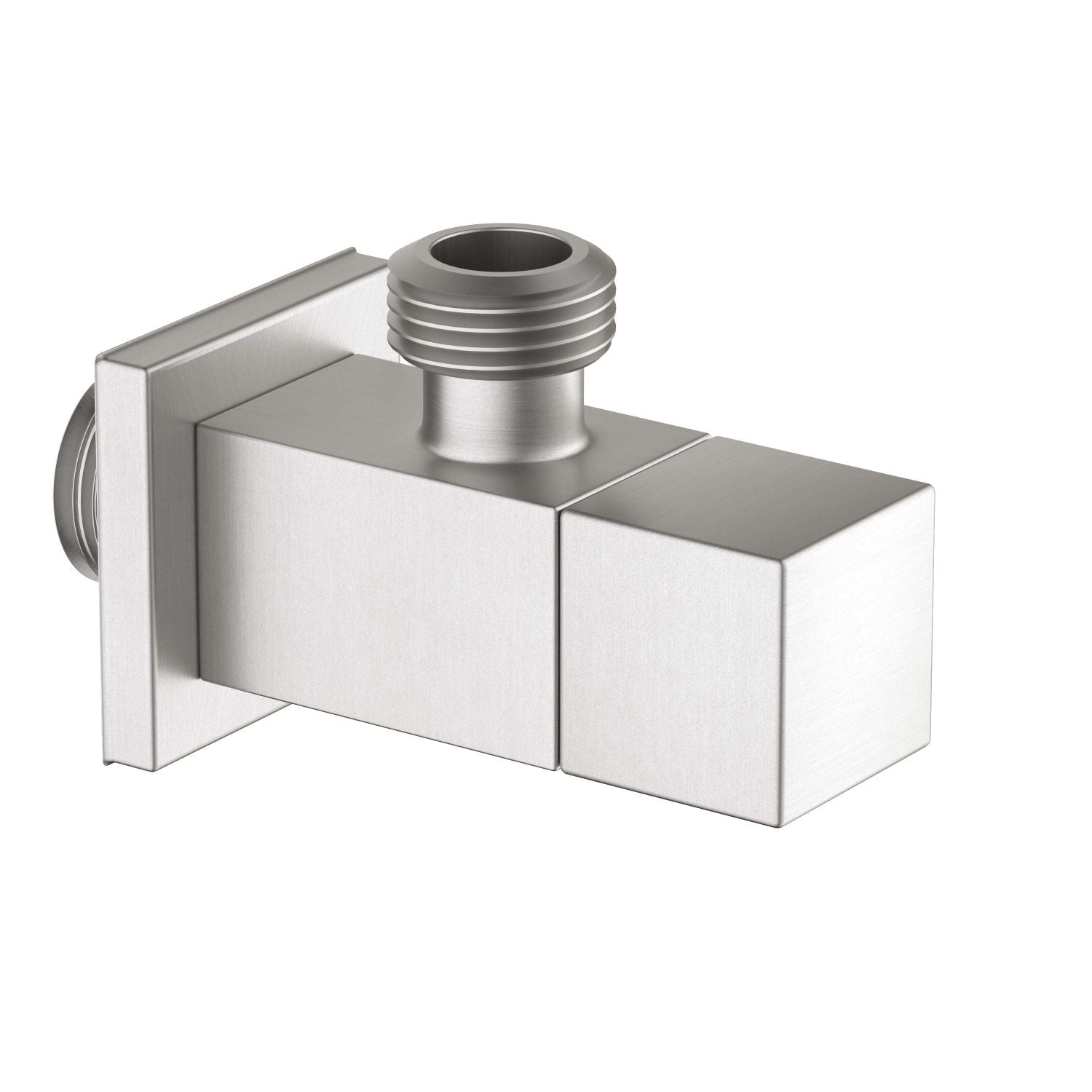

The AV04 is a compact square angle stop valve designed to provide local water shutoff for compatible bathroom fixtures and plumbing connections. Its geometric body, square handle and matching wall flange coordinate with contemporary square bathroom collections.
The solid brass valve body provides strength and long-term reliability, while the ceramic cartridge supports smooth and dependable shutoff. Its zinc alloy handle rotates 90 degrees between the open and closed positions for quick operation. Both the wall inlet and fixture outlet use G1/2 male threads.
Product Features
- Solid Brass Valve Body – Provides strength and long-term reliability for bathroom water-supply installations.
- Ceramic Cartridge – Supports smooth operation and dependable shutoff control.
- 90-Degree Quarter-Turn Control – Opens or closes the valve with a short 90-degree handle movement.
- Square Geometric Design – Coordinates with square faucets, drains and contemporary bathroom accessories.
- Local Water Shutoff – Allows the connected fixture or hose to be isolated for maintenance without shutting off the main water supply.
- Dual G1/2 Male Connections – Uses G1/2 threads at both the wall inlet and fixture outlet.
- Compact 61 mm Projection – Provides water control without occupying unnecessary wall space.
- Square Zinc Alloy Handle – Provides convenient operation while maintaining a coordinated geometric appearance.
- Matching Square Flange Included – Conceals the wall opening for a clean, finished installation.
- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Angle stop valve
- Body Material: Solid brass
- Cartridge: Ceramic cartridge
- Handle Material: Zinc alloy
- Handle Design: Square
- Handle Operation: 90-degree quarter turn
- Inlet Connection: G1/2 male thread
- Outlet Connection: G1/2 male thread
- Flow Direction: 90-degree angle
- Nominal Dimensions: 42 × 61 × 41 mm
- Overall Projection: 61 mm
- Square Flange Width: 42 mm
- Valve Body Width: 26 mm
- Wall Thread Length: 20 mm
- Installation: Wall mounted
- Included Component: Square wall flange
- Application: Local water shutoff for compatible bathroom fixtures and hoses
