Product Description

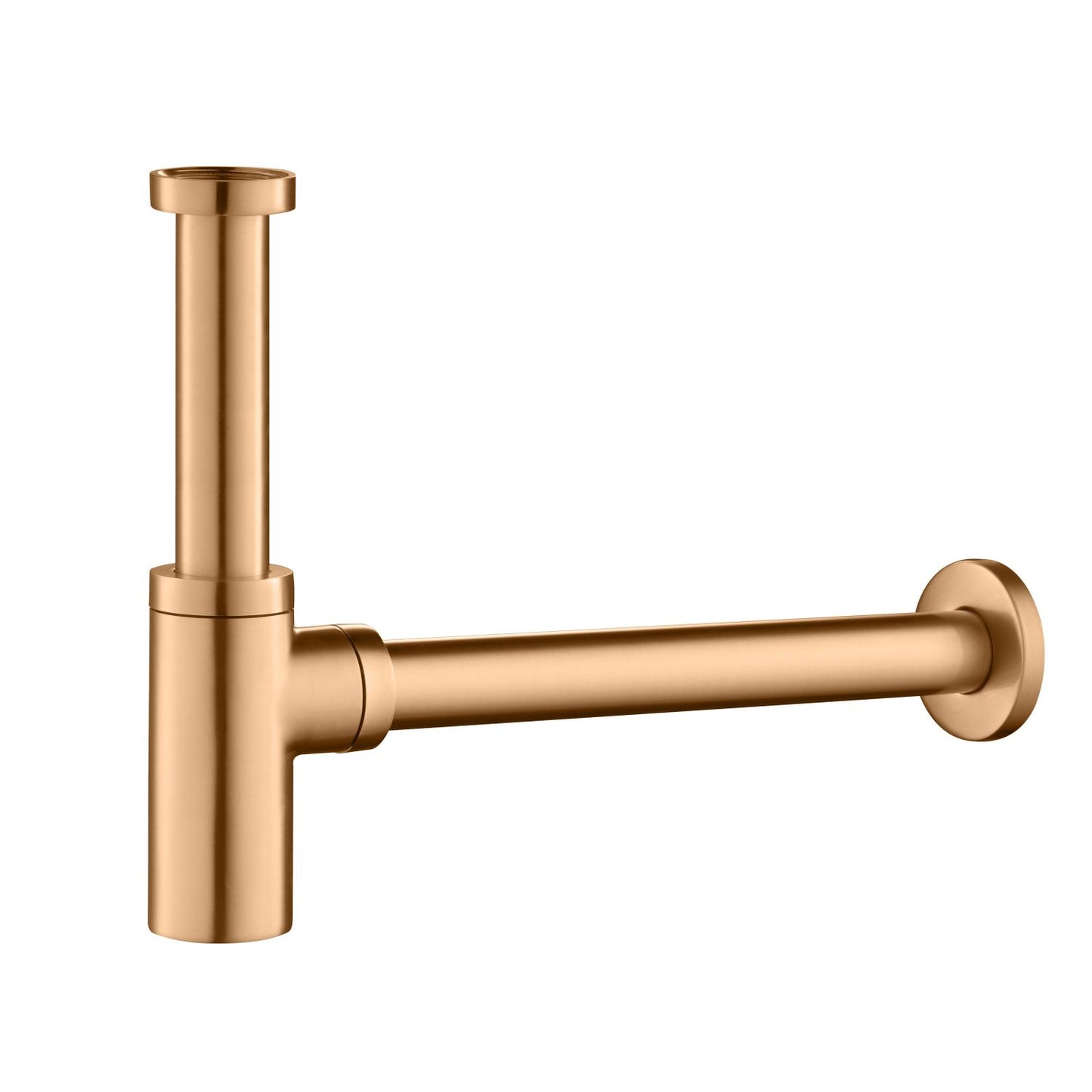

The BT0010 is an extra-tall round bottle trap designed for exposed installations where the bathroom sink drain is positioned significantly higher than the wall waste outlet. Its extended vertical inlet tube provides an adjustable overall installation height of 318 to 418 mm, offering greater flexibility than a standard-height bottle trap.
The brass trap body provides strength and long-term reliability, while an internal plastic bottle insert maintains the water seal that helps prevent drain odors from entering the bathroom. A SUS304 stainless steel extension tube connects the trap to the wall outlet. Its streamlined round profile provides a finished appearance beneath wall-mounted sinks, console sinks and open vanities.
Product Features
- Durable Brass Trap Body – Provides strength and long-term reliability for exposed bathroom sink drainage installations.
- Extra-Tall Inlet Configuration – Accommodates installations where the sink drain is positioned substantially higher than the wall waste outlet.
- 318–418 mm Adjustable Overall Height – Provides 100 mm of vertical adjustment for different sink and drain layouts.
- Odor-Blocking Water Seal – The internal bottle structure retains water to help prevent drain odors from entering the bathroom.
- Internal Plastic Bottle Insert – Forms the functional water-seal structure inside the decorative brass body.
- SUS304 Stainless Steel Extension Tube – Provides strength and corrosion resistance at the wall-drain connection.
- Removable Cleanout Component – Provides access to the internal trap for routine cleaning and removal of accumulated debris.
- 1-1/4-Inch Drain Connection – Coordinates with compatible bathroom sink drains and wall waste connections.
- Finished Wall Flange Included – Conceals the wall opening for a clean, completed installation.
- Designed for Exposed Plumbing – Provides a coordinated appearance beneath wall-mounted sinks, console sinks and open vanities.
- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Extra-tall bottle trap
- Body Material: Brass
- Internal Trap Material: Plastic
- Extension Tube Material: SUS304 stainless steel
- Design: Round body with extended vertical inlet tube
- Inlet Size: G1-1/4
- Outlet Diameter: 31.75 mm / 1-1/4 inch
- Overall Height Adjustment: 318–418 mm
- Height Adjustment Range: 100 mm
- Maximum Overall Length: 340 mm
- Trap Body Diameter: 50 mm
- Trap Body Height: 121 mm
- Wall Flange Diameter: 71 mm
- Installation: Exposed under-sink installation
- Included Components: Bottle trap, vertical inlet tube, horizontal extension tube and wall flange
- Application: Bathroom sink drainage
- Recommended Applications: Installations with an elevated sink drain or a low-positioned wall waste outlet
