Product Description

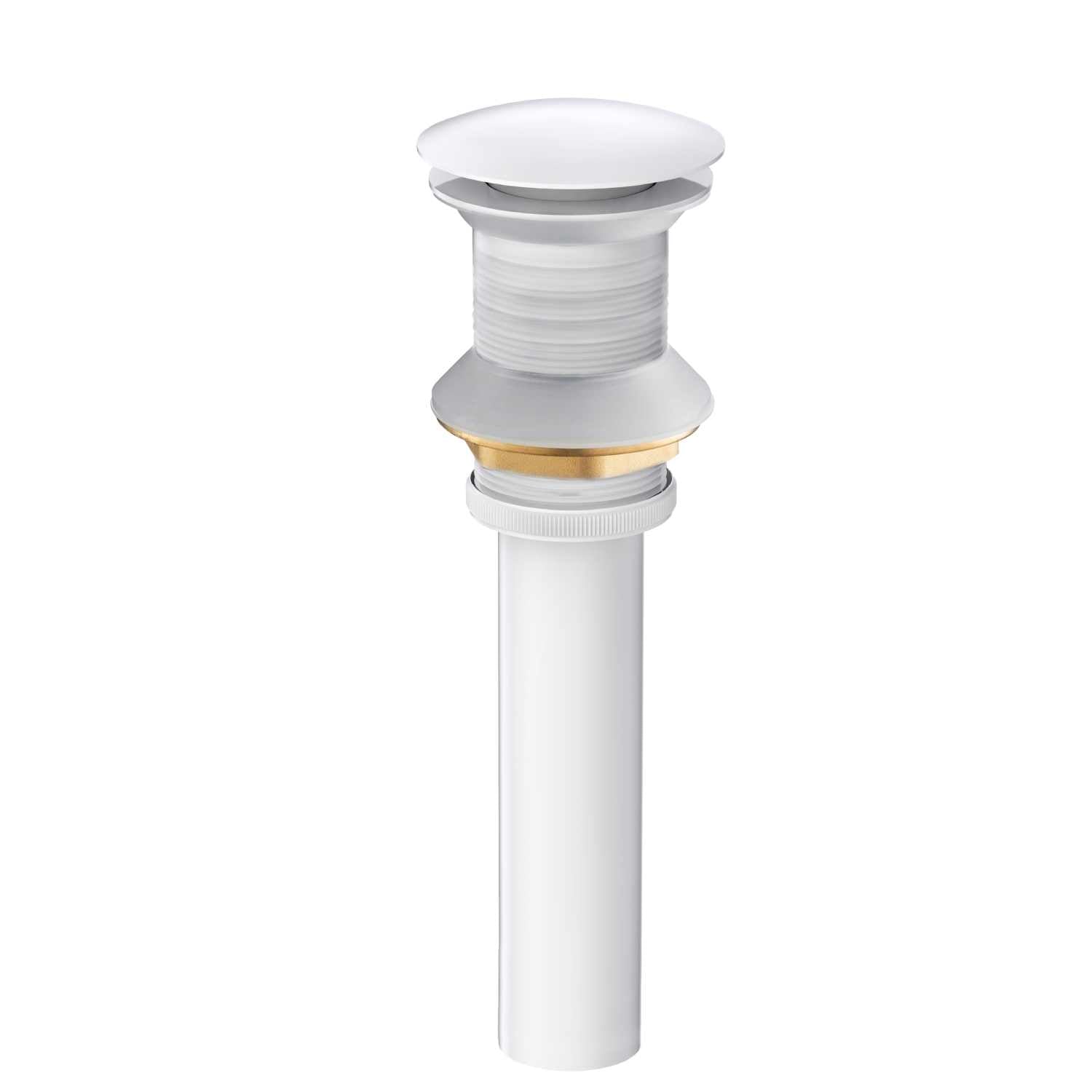

The PW02 is an oversized push-button pop-up drain designed for vessel sinks and other bathroom basins without an overflow. Its solid brass body and Ø66 mm brass cover provide broad coverage around the drain opening, while the streamlined structure eliminates unnecessary overflow openings.
Pressing the top cover opens or closes the drain without requiring a lift rod. The threaded brass body accommodates compatible sink thicknesses, while sealing washers and a locking nut secure the drain beneath the basin. A 125 mm stainless steel tailpiece provides a durable G1-1/4 connection to compatible bottle traps and P-traps.
Product Features
- Oversized Solid Brass Body – Provides substantial material strength and long-term reliability for bathroom sink drainage.
- Designed without Overflow Openings – Creates a direct drainage path for vessel sinks and other basins without an overflow channel.
- Ø66 mm Brass Push Cover – Provides broad coverage around the sink opening and a coordinated finished appearance.
- Smooth Push-Button Operation – Press once to close the drain and press again to release water, without requiring a lift rod.
- Stainless Steel Tailpiece – The 125 mm extension provides a durable connection to compatible under-sink drainage components.
- G1-1/4 Drain Connection – Connects with compatible bottle traps, P-traps and bathroom sink drainage systems.
- 35–62 mm Installation Range – Accommodates compatible basin and countertop installation thicknesses.
- Secure Threaded Installation – Sealing washers and a locking nut compress around the sink opening to support a stable, watertight connection when correctly installed.
- Serviceable Drain Mechanism – The upper push-button assembly can be accessed for routine cleaning and maintenance.
- Ideal for Vessel Sinks – Particularly suitable for above-counter basins that do not include an integrated overflow.
- Coordinated Finish Options – Available in nine finishes to match Aquavit faucets, traps and bathroom accessories.
- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Push-button pop-up drain
- Overflow Configuration: Without overflow
- Main Body Material: Solid brass
- Cover Material: Brass
- Tailpiece Material: Stainless steel
- Cover Diameter: 66 mm
- Operation: Push-to-open and push-to-close
- Drain Connection: G1-1/4
- Installation Range: 35–62 mm
- Overall Height: 210 mm
- Drain Body Height: 78 mm
- Tailpiece Length: 125 mm
- Tailpiece Diameter: 32 mm
- Compatible Sink: Vessel sink or bathroom sink without overflow
- Installation: Threaded body with sealing washers and locking nut
- Included Components: Pop-up drain body, push cover, sealing washers, locking nut and stainless steel tailpiece
- Application: Residential, hospitality and project bathroom sinks
