Product Description

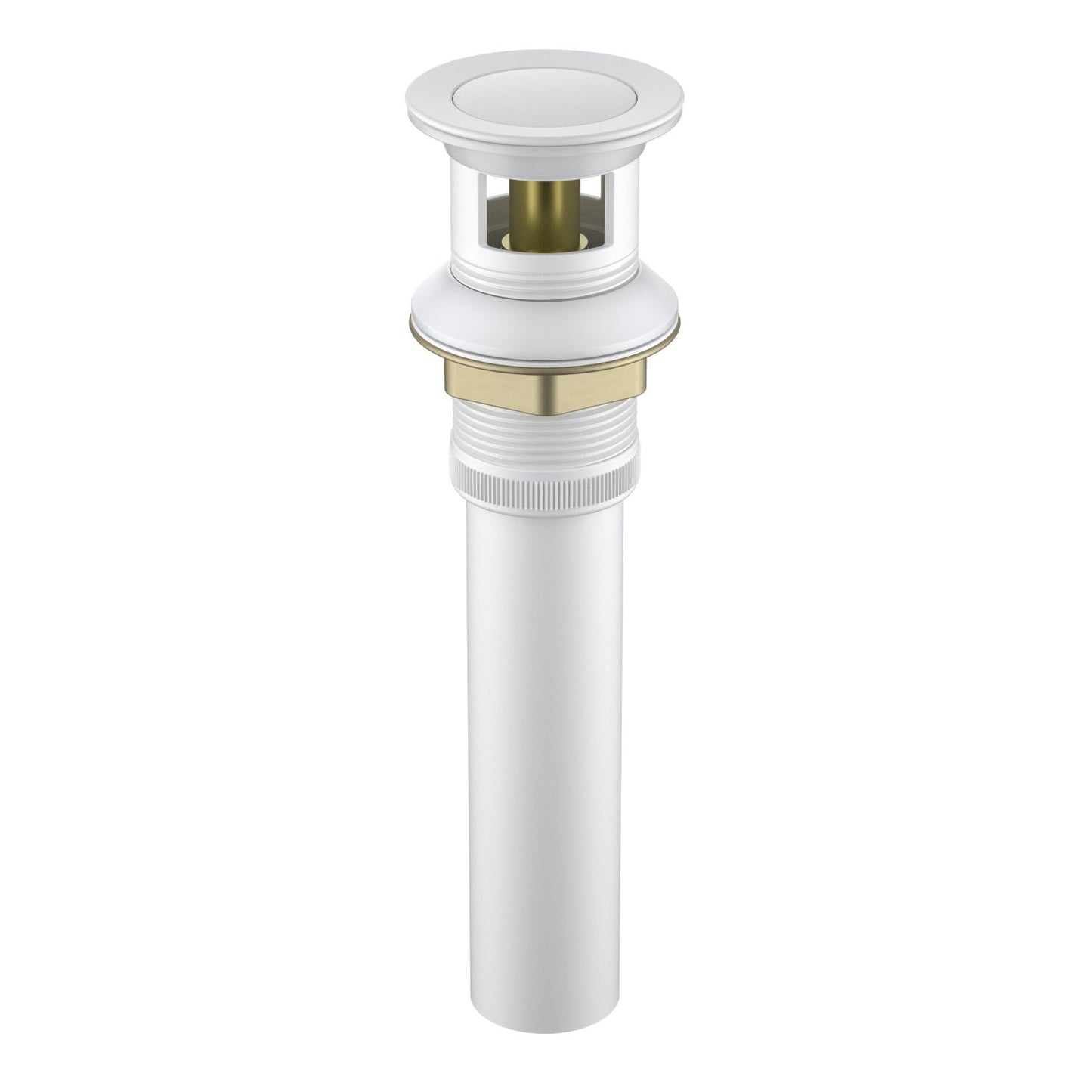

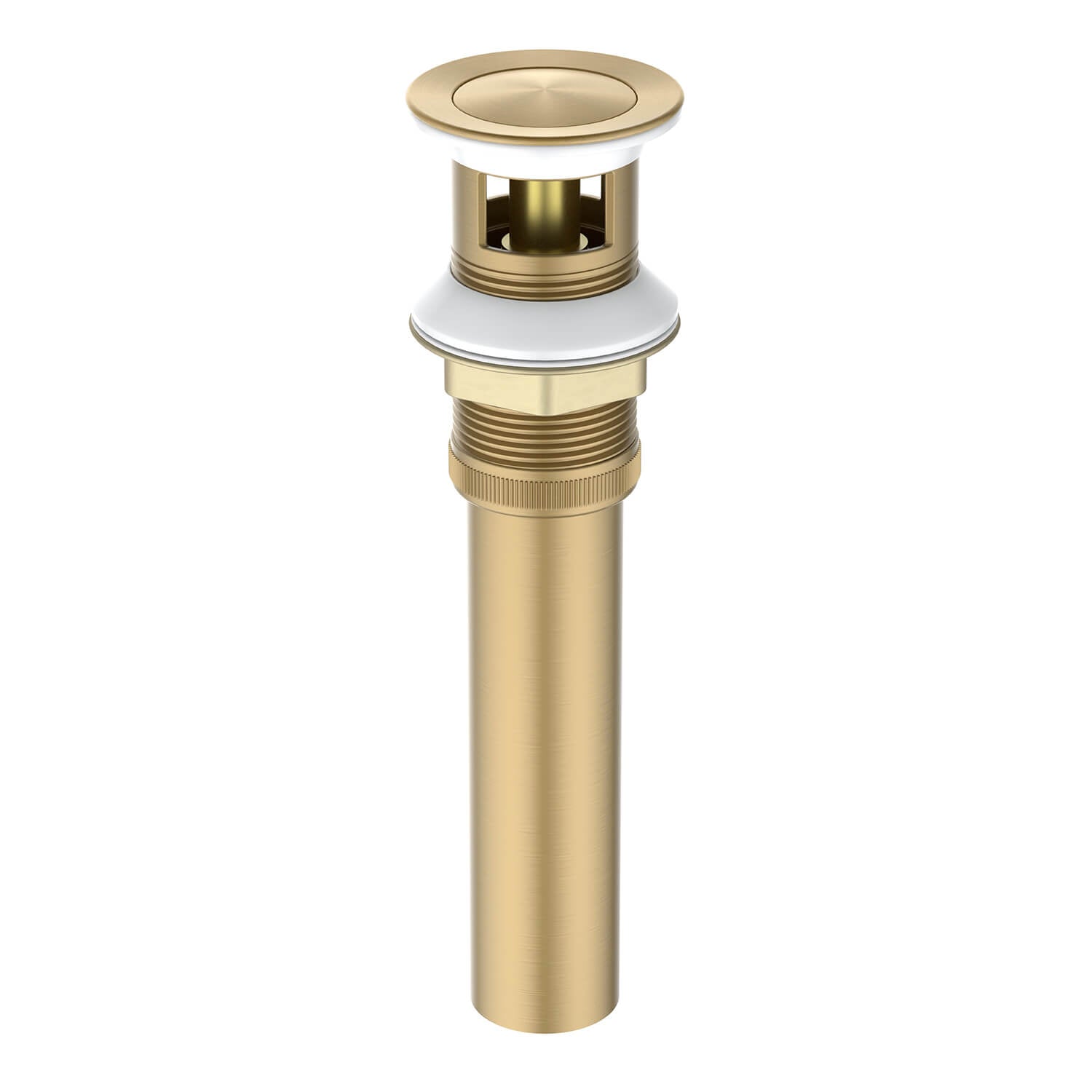

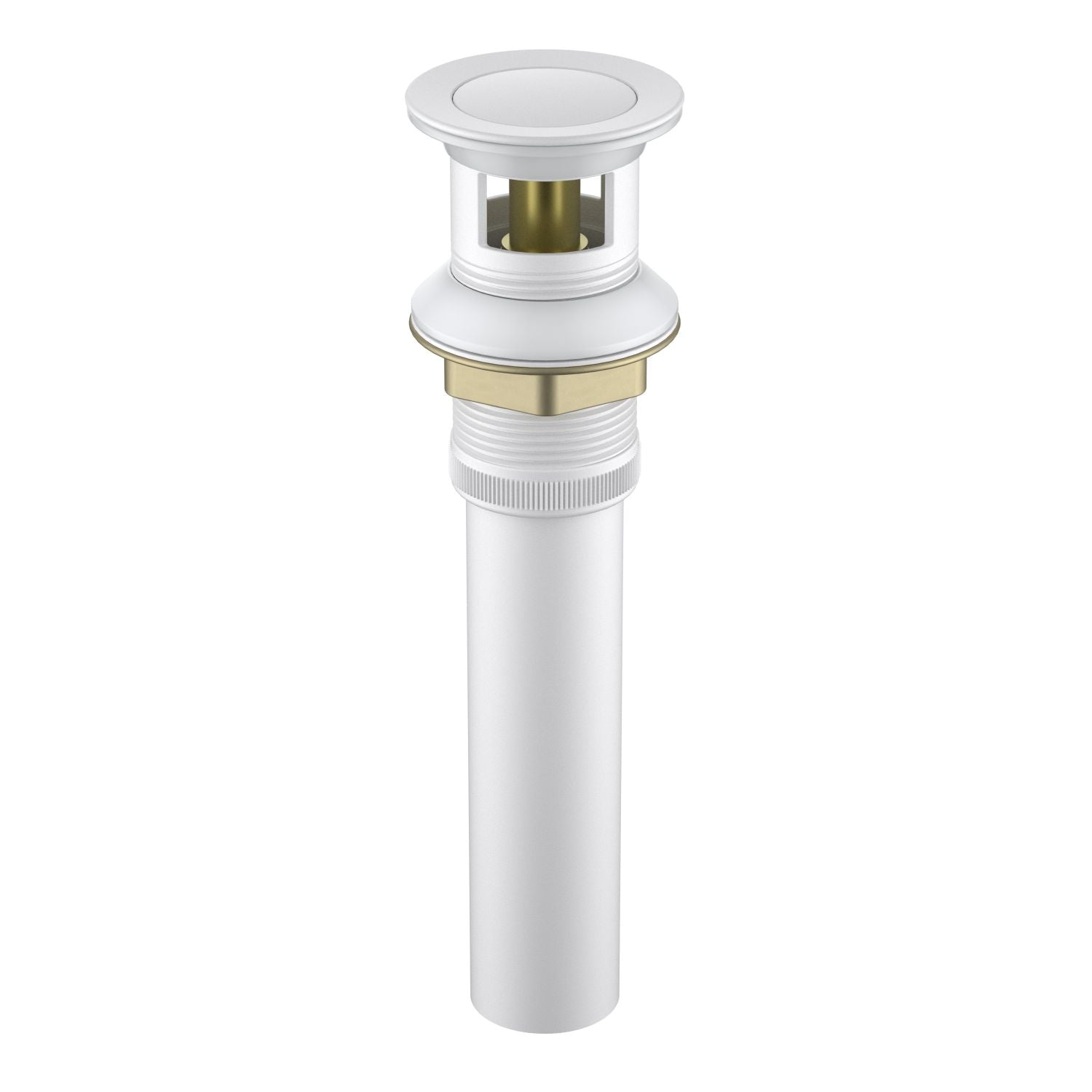

The PW0003 is a cUPC-certified push-button pop-up drain developed for North American bathroom sinks with an overflow. Its solid brass body provides reliable structural strength, while the compact Ø36 mm push cover creates a cleaner and more refined appearance around the drain opening.
Pressing the center cover opens or closes the drain without requiring a lift rod. The threaded body supports a 41–61 mm installation range, while sealing washers and a locking nut secure the drain beneath the basin. A 126 mm stainless steel tailpiece provides a durable connection to compatible under-sink drainage systems.
Product Features
- cUPC-Certified Construction – Designed for North American residential, hospitality and commercial projects requiring certified plumbing products.
- Solid Brass Drain Body – Provides dependable strength and long-term reliability for bathroom sink drainage.
- Designed for Sinks with Overflow – Integrated overflow openings connect the basin overflow channel to the drainage system.
- Compact Ø36 mm Push Cover – Creates a smaller visual footprint and a clean, refined appearance inside the basin.
- Ø54 mm Upper Flange – Provides suitable coverage around the sink drain opening for secure installation.
- Smooth Push-Button Operation – Press once to close the drain and press again to release water without requiring a lift rod.
- Stainless Steel Tailpiece – The 126 mm extension provides a durable and corrosion-resistant connection to compatible drainage components.
- 41–61 mm Installation Range – Accommodates compatible sink and countertop installation thicknesses.
- Secure Threaded Installation – Sealing washers and a locking nut support a stable, watertight connection when correctly installed.
- Serviceable Drain Mechanism – The upper push-button assembly can be accessed for routine cleaning and maintenance.
- Coordinated Finish Options – Available in multiple finishes to match Aquavit faucets, traps and bathroom accessories.
- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Push-button pop-up drain
- Certification: cUPC
- Overflow Configuration: With overflow
- Main Body Material: Solid brass
- Tailpiece Material: Stainless steel
- Push Cover Diameter: 36 mm
- Upper Flange Diameter: 54 mm
- Operation: Push-to-open and push-to-close
- Installation Range: 41–61 mm
- Drain Body Height: 77 mm
- Tailpiece Length: 126 mm
- Lower Connection Diameter: 37 mm
- Compatible Sink: Bathroom sink with overflow
- Installation: Threaded body with sealing washers and locking nut
- Included Components: Pop-up drain body, push mechanism, sealing washers, locking nut and stainless steel tailpiece
- Application: North American residential, hospitality and project bathroom sinks
