Key Features
Solid Cast-Brass Valve Body
Solid cast-brass construction provides reliable strength, pressure resistance, and long-term durability.
French Vernet Thermostatic Cartridge
Maintains the selected water temperature within ±1.5°C for stable and comfortable showering.
G3/4 High-Flow Connections
G3/4 connections support stable, high-volume water delivery across TSV5 configurations, from single-outlet valves to multi-outlet shower systems.
TSV5 Compatible Rough-In Valve
The rough-in valve can be installed before the final trim finish and handle design are selected. Compatible TSV5 trims are available for different project requirements.
Integrated Check Valves & Service Stops
Check valves help prevent backflow, while service stops allow easier inspection and maintenance.
Flexible Concealed Installation
The fully enclosed box supports solid and hollow wall installation, with multiple mounting points, dual spirit levels, and an adjustable installation depth of 81–103 mm.
Product Description

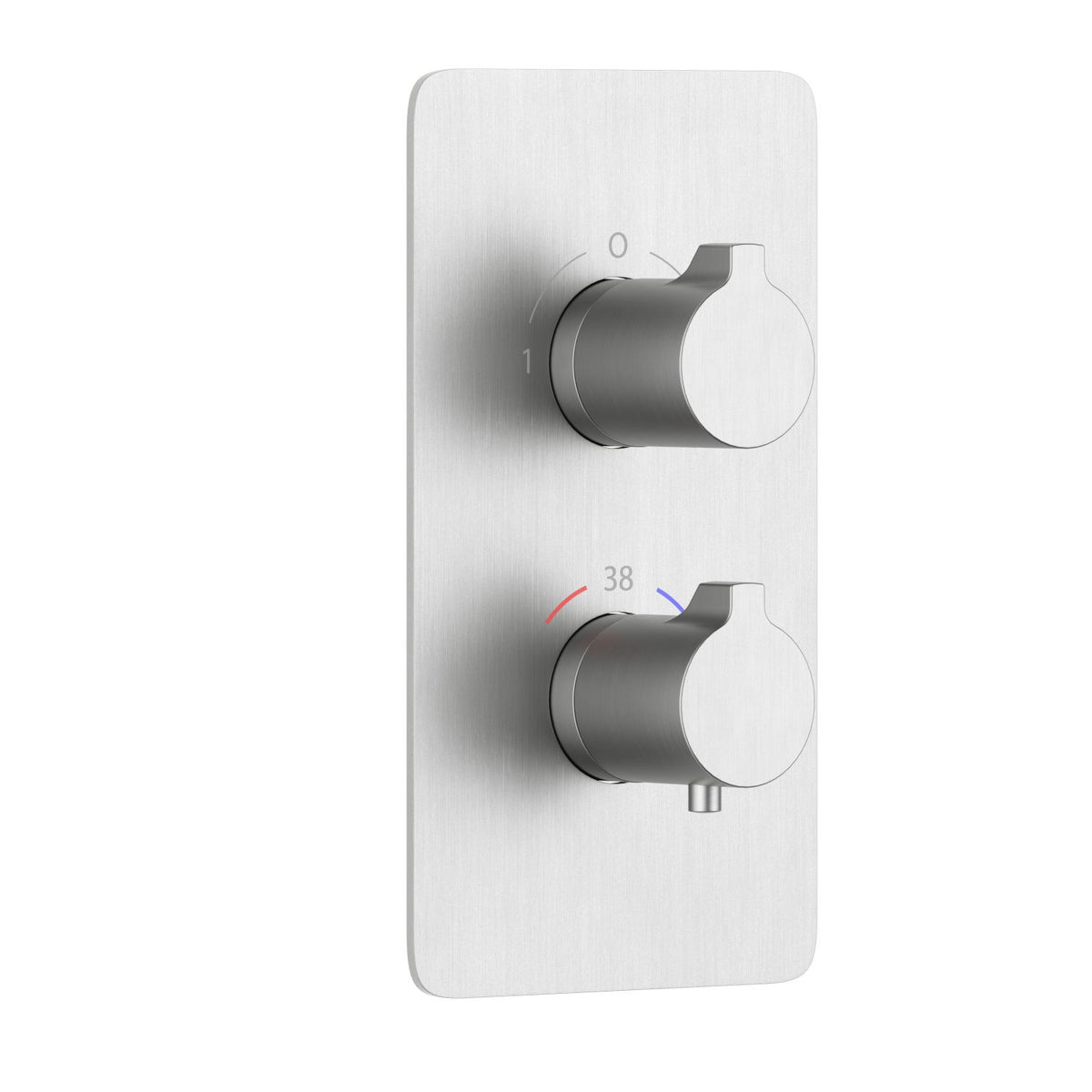

The Aquavit PH0952X01 is a two-control trim kit designed for a compatible Aquavit TSV5 concealed thermostatic shower valve. It features a 3 mm SUS304 stainless steel rectangular trim plate and two round solid brass handles.
The upper handle controls the connected shower function, while the lower handle adjusts the thermostatic water temperature. The vertically arranged controls provide intuitive operation, and the 120 × 220 mm plate covers the concealed valve opening for a clean, finished installation.
This product includes the exterior trim plate and two handles only. The compatible thermostatic rough-in valve is sold separately.
Product Features
- SUS304 Stainless Steel Trim Plate: The 120 × 220 × 3 mm rectangular plate provides corrosion resistance, structural rigidity and coverage for the concealed valve opening.
- Round Solid Brass Handles: Both control handles are constructed from solid brass for strength, durability and a clean rounded appearance.
- Separate Function and Temperature Controls: The upper handle operates the connected shower function, while the lower handle adjusts the thermostatic water temperature.
- Two-Control Vertical Layout: The vertically arranged handles clearly separate shower function operation from temperature adjustment.
- Concealed Valve Trim: Provides the finished exterior control interface while covering the rough-in valve opening.
- TSV5 Rough-In Compatibility: Designed for a compatible Aquavit TSV5 two-control thermostatic rough-in valve with the matching function configuration.
- Trim Kit Only: Includes the trim plate and two handles; the thermostatic rough-in valve is sold separately.
Product Details
- Product type: Thermostatic shower valve trim kit
- Valve series: TSV5
- Number of controls: 2
- Function control: Upper handle
- Temperature control: Lower handle
- Trim plate material: SUS304 stainless steel
- Trim plate shape: Rectangular
- Trim plate dimensions: 120 × 220 × 3 mm
- Handle material: Solid brass
- Handle style: Round
- Handle arrangement: Vertical
- Installation: Concealed wall-mounted
- Compatible rough-in valve: Aquavit TSV5 two-control thermostatic rough-in valve
- Rough-in valve: Sold separately
- Included components: Trim plate and two handles
Why Aquavit for Concealed Shower Systems Programs?
OEM/ODM Manufacturing
Flexible OEM/ODM support for your brand projects.
Custom Finishes
Multiple finish options to match your market needs.
Inspection Support
Quality control and inspection support for consistent supply.
Technical Documentation
Complete technical files to support your project development.
Working on a Project? Let's Build It Together.
Competitive pricing and technical support for concealed shower systems.
Inquire for Project/OEMFrequently Asked Questions
What is the TSV5 thermostatic shower valve body made of?
The TSV5 features a solid cast-brass valve body for reliable strength, pressure resistance, and long-term durability.
What type of thermostatic cartridge does it use?
It uses a French Vernet thermostatic cartridge that maintains the selected water temperature within ±1.5°C for stable and comfortable showering.
What is the flow rate of the valve?
At 3 bar, the upper outlet delivers approximately 22.5 L/min and the lower outlet approximately 26.8 L/min when tested individually. Actual flow may vary depending on water pressure and system configuration.
What are the installation requirements?
The valve uses G3/4 inlet and outlet connections and requires an installation depth of approximately 81–103 mm. Built-in horizontal and vertical spirit levels help ensure accurate alignment.
Can it be installed in both solid and hollow walls?
Yes. The fully enclosed rough-in box includes multiple mounting points, allowing secure concealed installation in both solid and hollow wall constructions.
Does the valve include check valves and service stops?
Yes. Integrated check valves help prevent crossflow, while the built-in service stops allow the water supply to be isolated for inspection and maintenance.
Is the rough-in valve universal, and does it come in different finishes?
The same TSV5 rough-in valve can be paired with multiple trim finishes and handle designs within the corresponding outlet configuration.
What if the rough-in valve is installed too deep?
Extension kits are available for installations that exceed the standard depth range. Please contact our sales team with the valve model and actual installation depth to confirm the correct extension kit.
