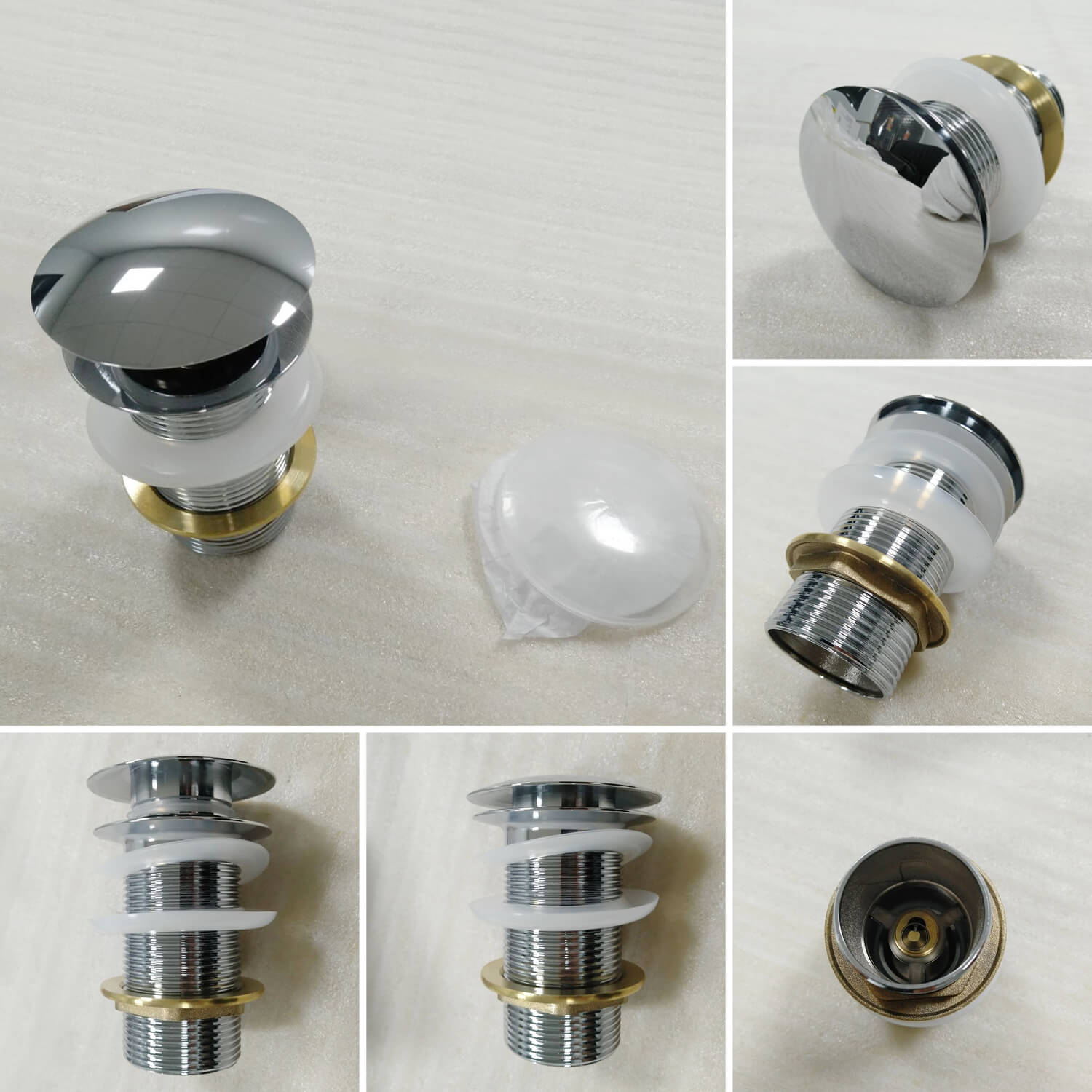

Inspection Photos
Product Description
Product Description
The PW0006 is a short-body push-button pop-up drain designed for vessel sinks and bathroom basins without an overflow. Its solid brass body and oversized Ø66 mm brass cover provide broad coverage around the drain opening and dependable structural strength.
Pressing the top cover opens or closes the drain without requiring a lift rod. The threaded body supports a 35–62 mm installation range, while sealing washers and a locking nut secure the drain beneath the basin. The G1-1/4 threaded outlet connects directly to compatible bottle traps, P-traps or separately supplied tailpieces.
Product Features
- Oversized Solid Brass Body – Provides substantial material strength and long-term reliability for bathroom sink drainage.

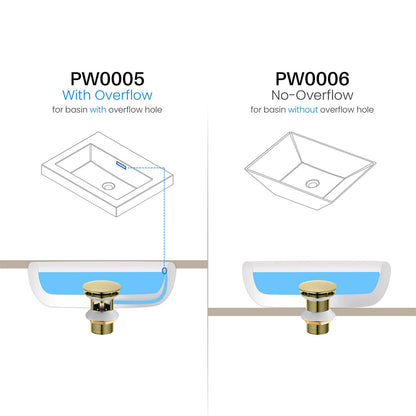

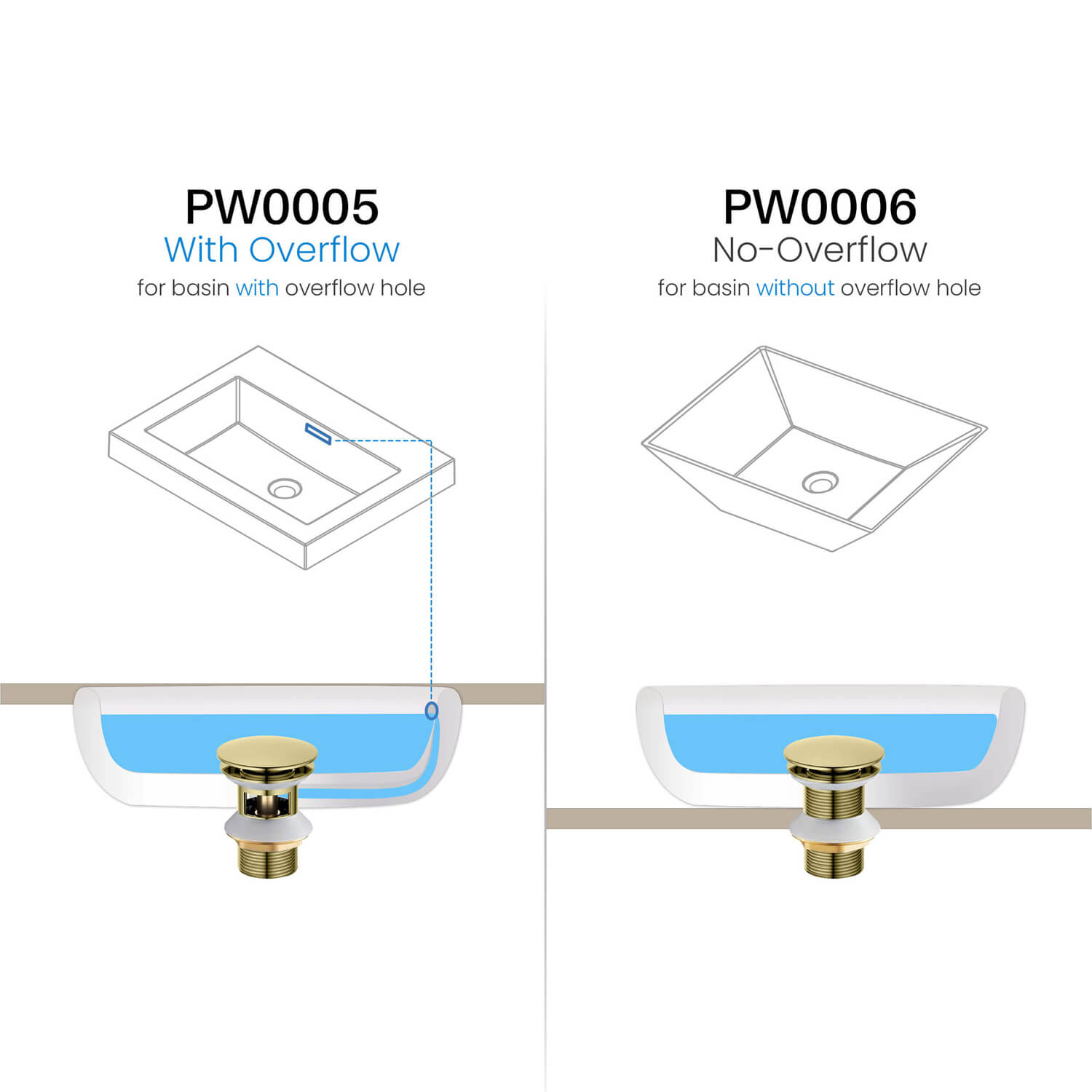

- Designed without Overflow Openings – Creates a direct drainage path for vessel sinks and other basins without an overflow channel.
- Ø66 mm Brass Push Cover – Provides broad coverage around the sink opening and a coordinated finished appearance.
- Compact Short-Body Design – Supplied without a tailpiece for projects requiring direct connection or a separately specified extension pipe.

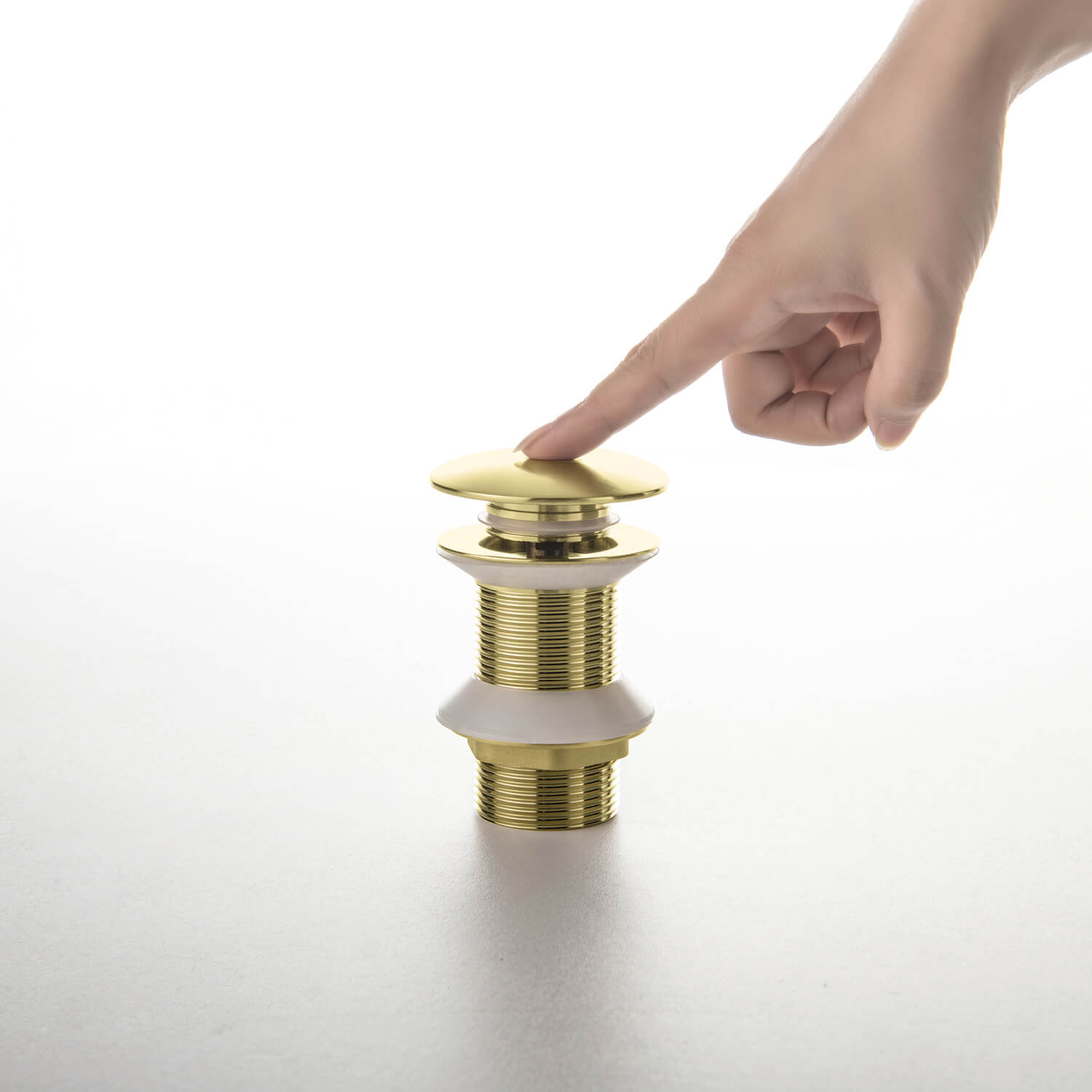

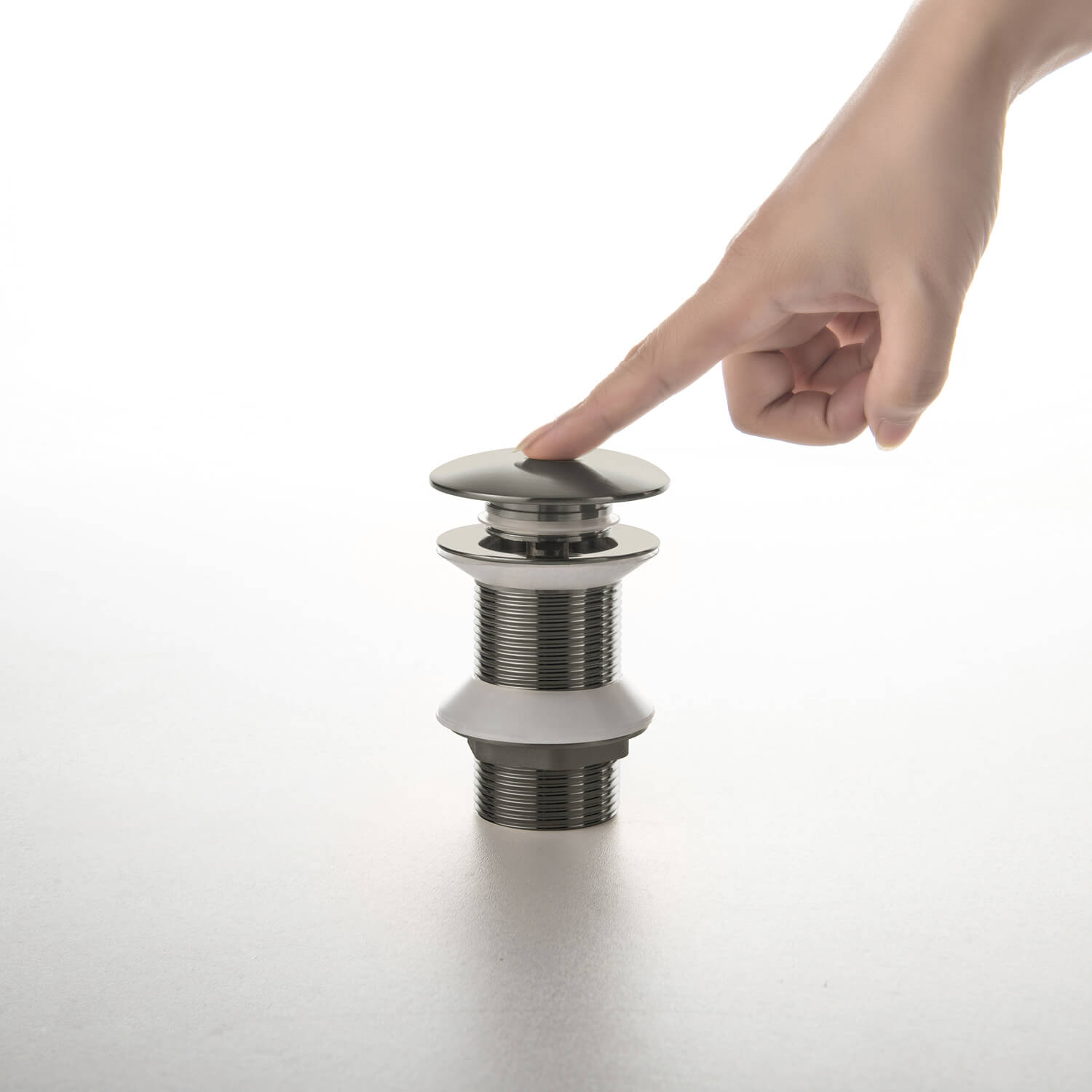

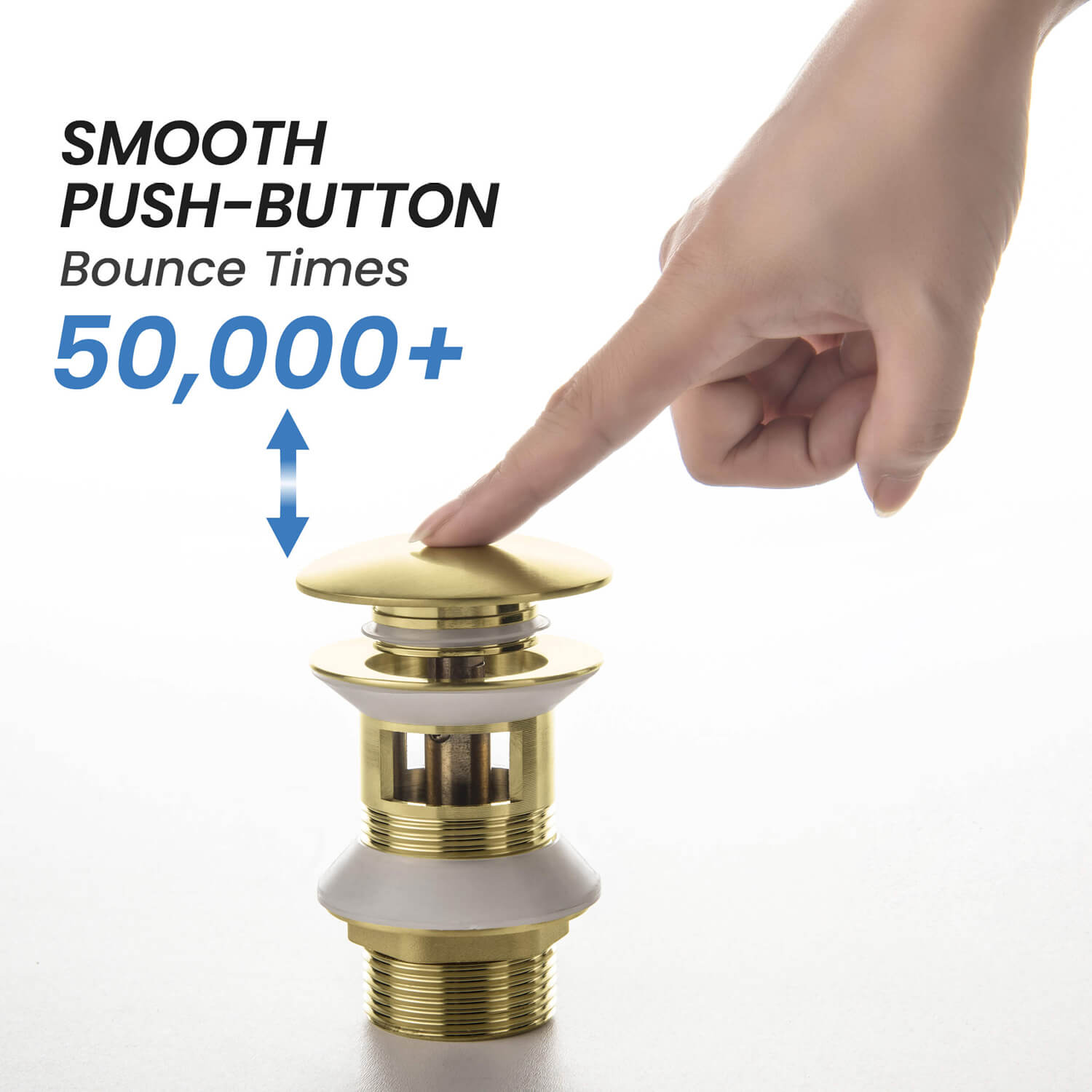

- Smooth Push-Button Operation – Press once to close the drain and press again to release water without requiring a lift rod.
- G1-1/4 Threaded Outlet – Connects with compatible bottle traps, P-traps and bathroom sink drainage components.
- 35–62 mm Installation Range – Accommodates compatible basin and countertop installation thicknesses.
- Secure Threaded Installation – Sealing washers and a locking nut support a stable, watertight connection when correctly installed.
- Serviceable Drain Mechanism – The upper push-button assembly can be accessed for routine cleaning and maintenance.

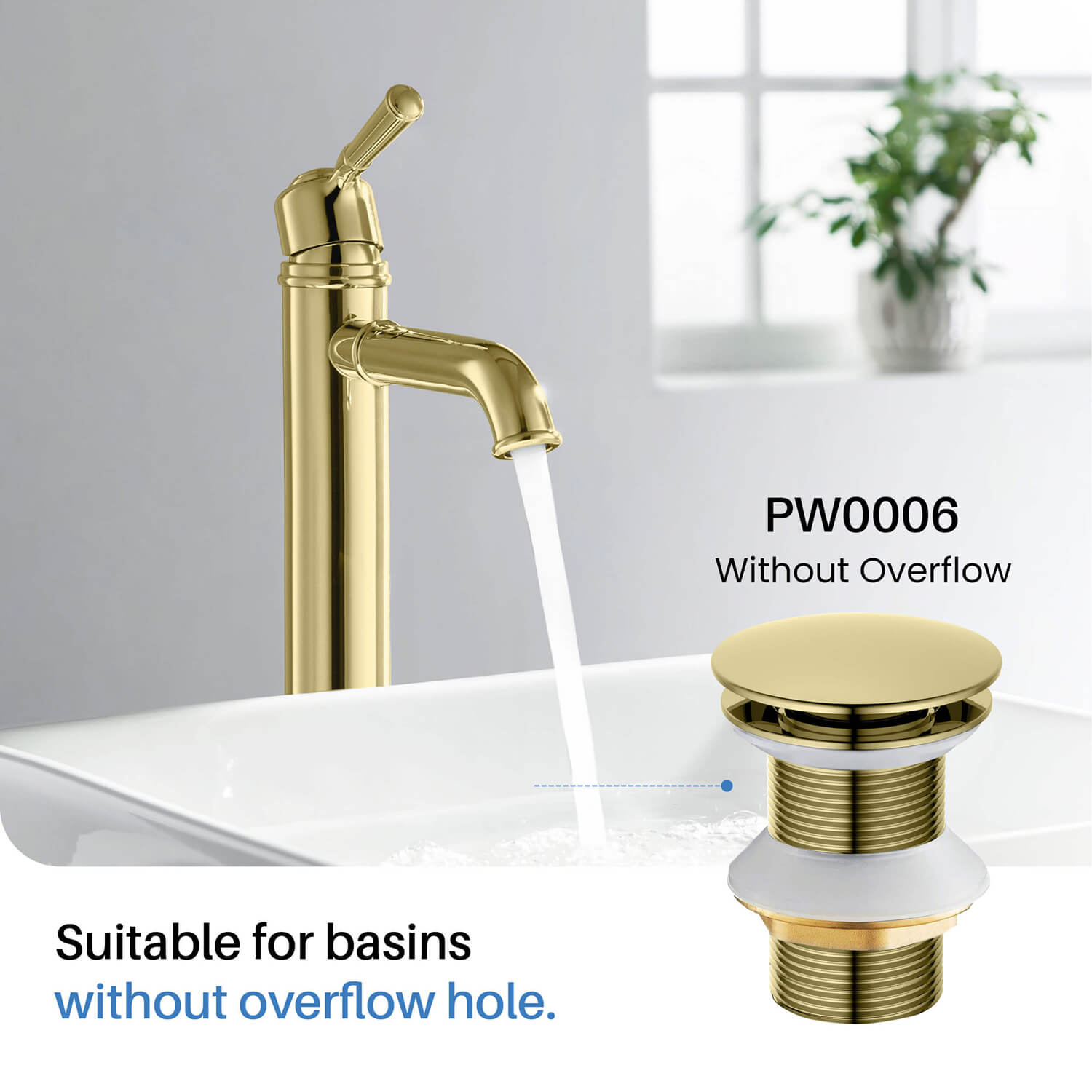

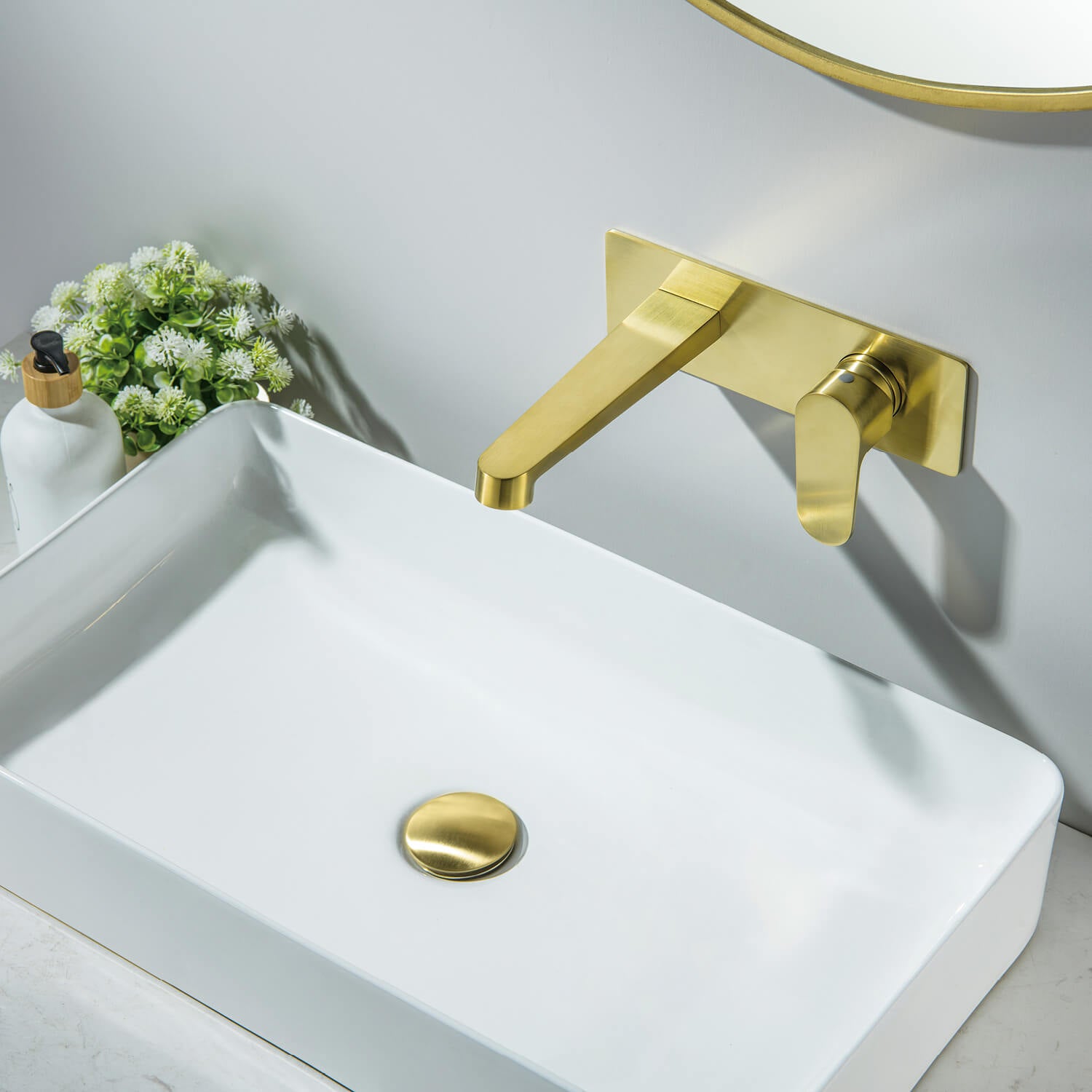

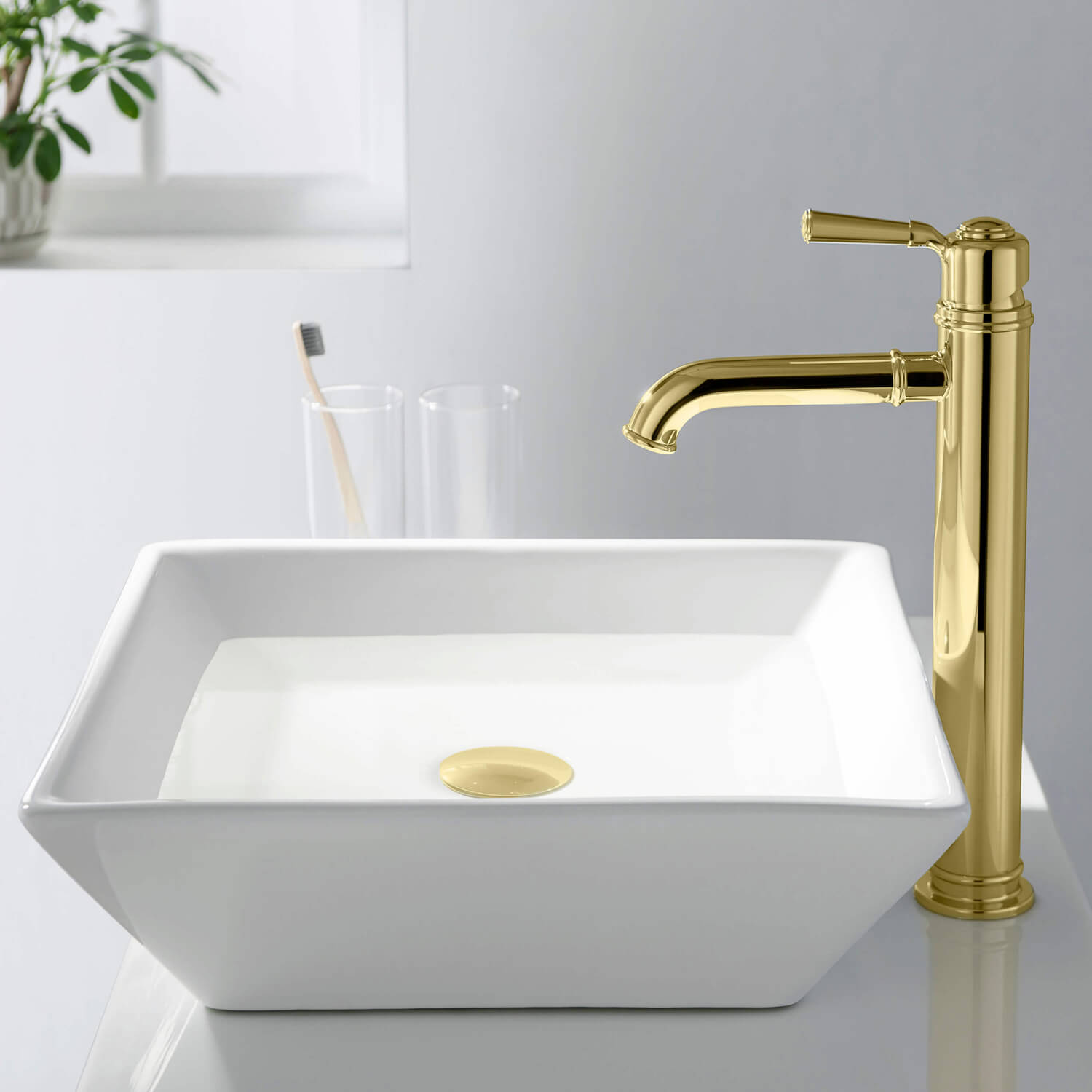

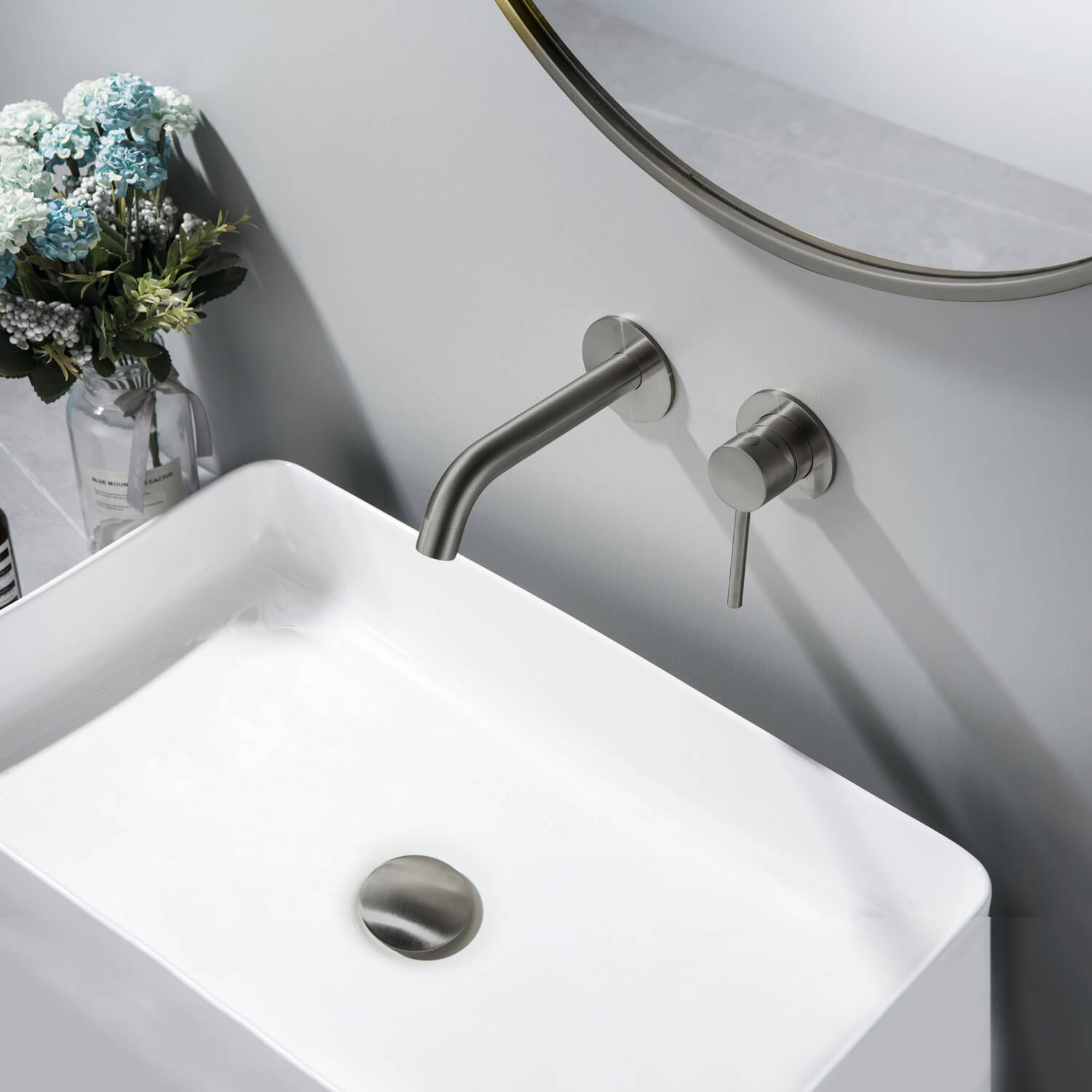

- Ideal for Vessel Sinks – Particularly suitable for above-counter basins without an integrated overflow.
- Flexible Project Configuration – Allows importers and project buyers to select the required tailpiece separately.
- Coordinated Finish Options – Available in multiple finishes to match Aquavit faucets, traps and bathroom accessories.

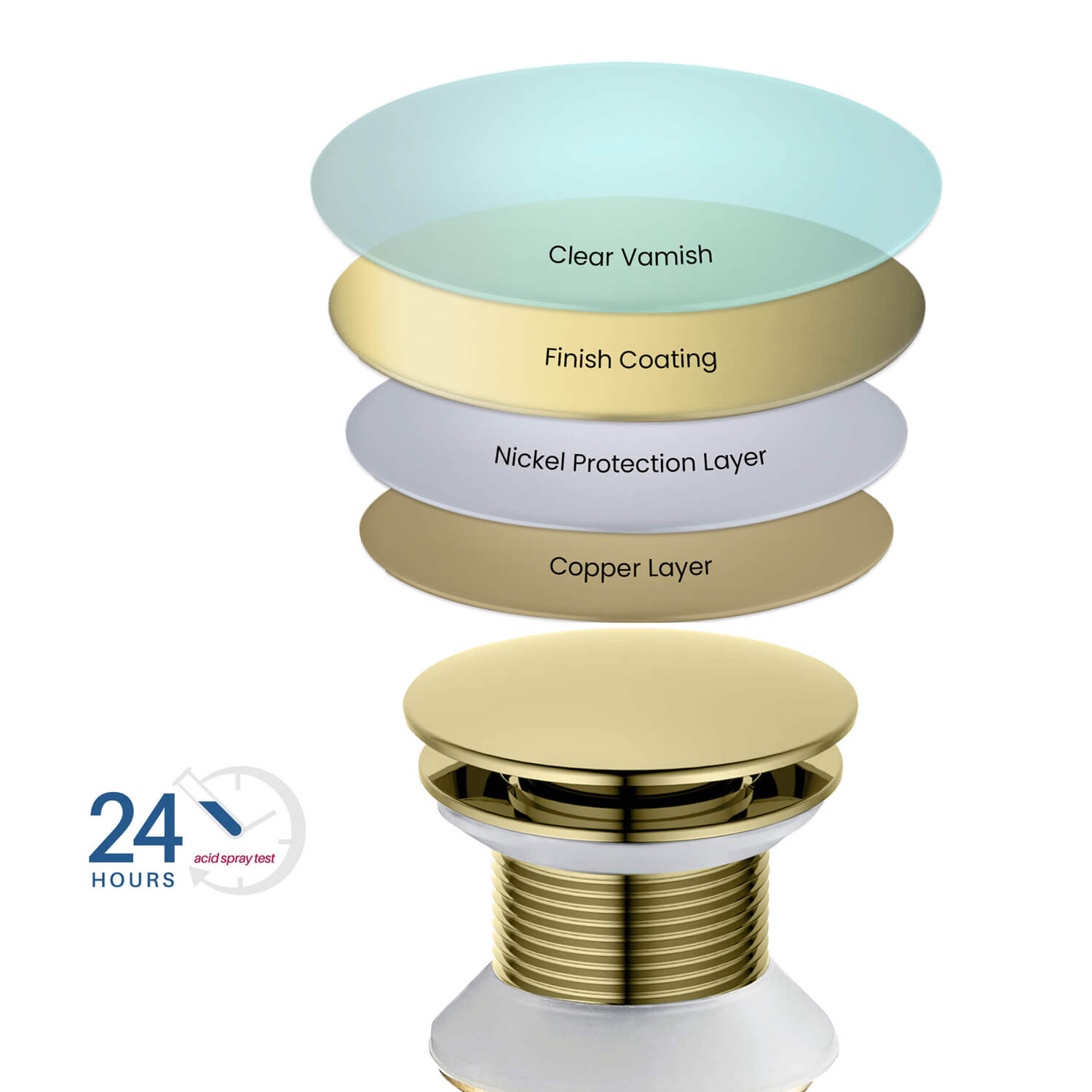

- Corrosion-Resistant Finish – Will not fade or tarnish over time.
Product Details
- Product Type: Push-button pop-up drain
- Overflow Configuration: Without overflow
- Main Body Material: Solid brass
- Cover Material: Brass

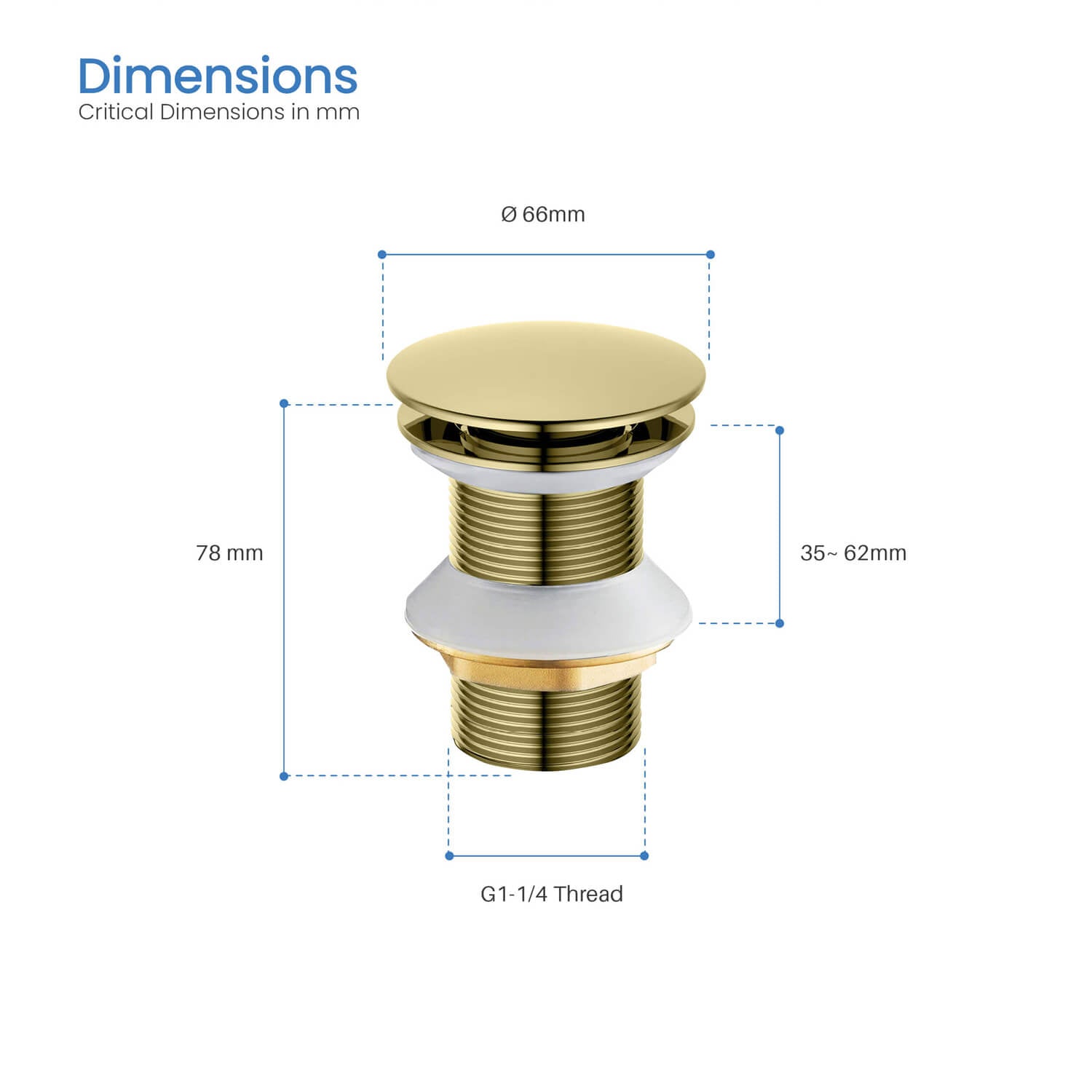

- Cover Diameter: 66 mm
- Operation: Push-to-open and push-to-close
- Drain Connection: G1-1/4
- Installation Range: 35–62 mm
- Drain Body Height: 78 mm
- Tailpiece: Not included
- Compatible Sink: Vessel sink or bathroom sink without overflow
- Installation: Threaded body with sealing washers and locking nut

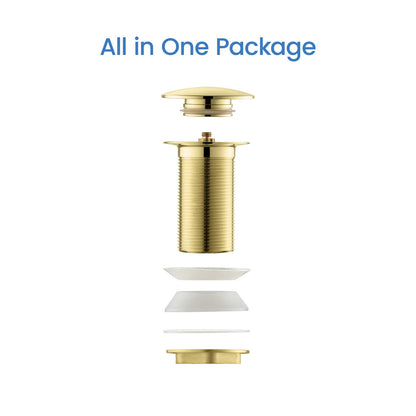

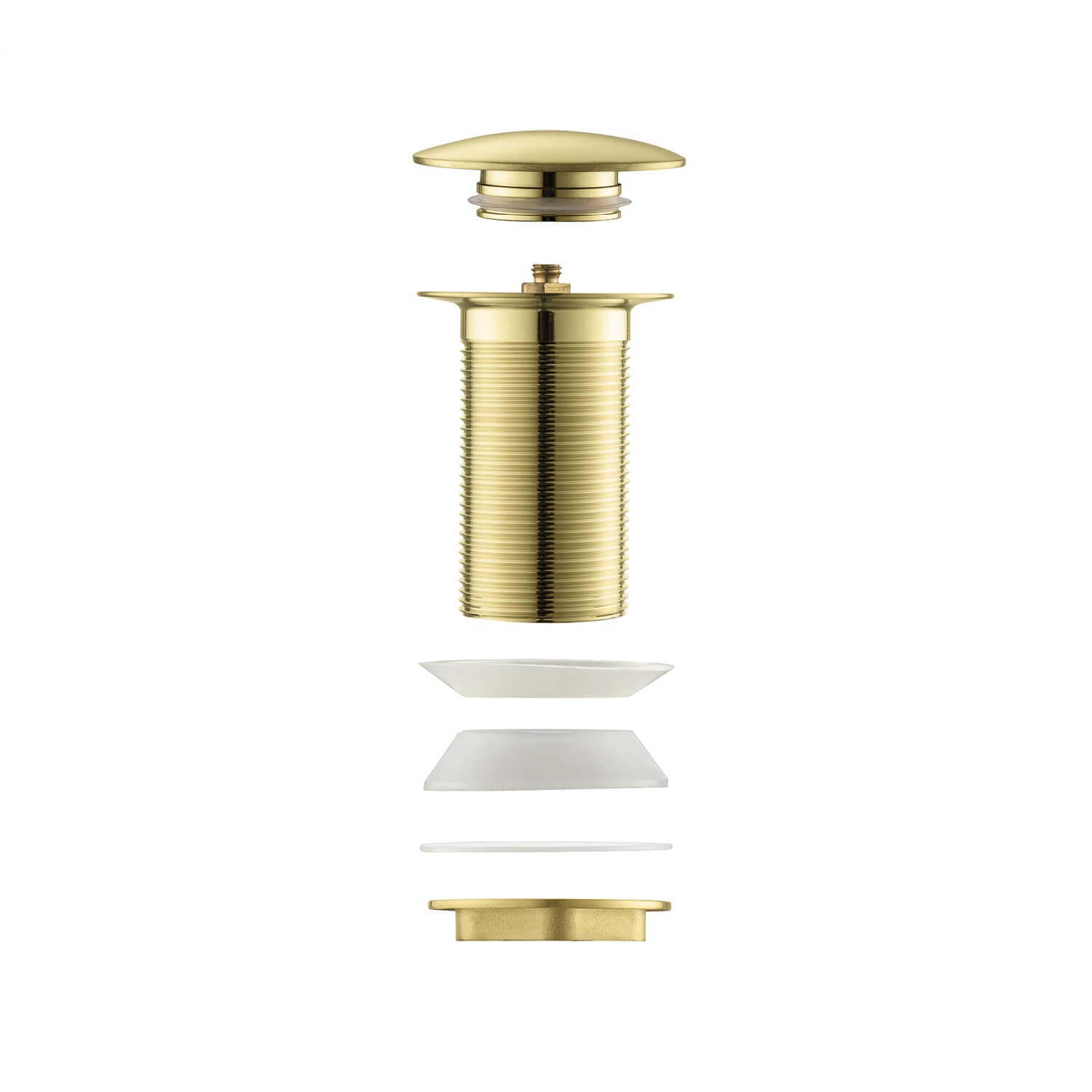

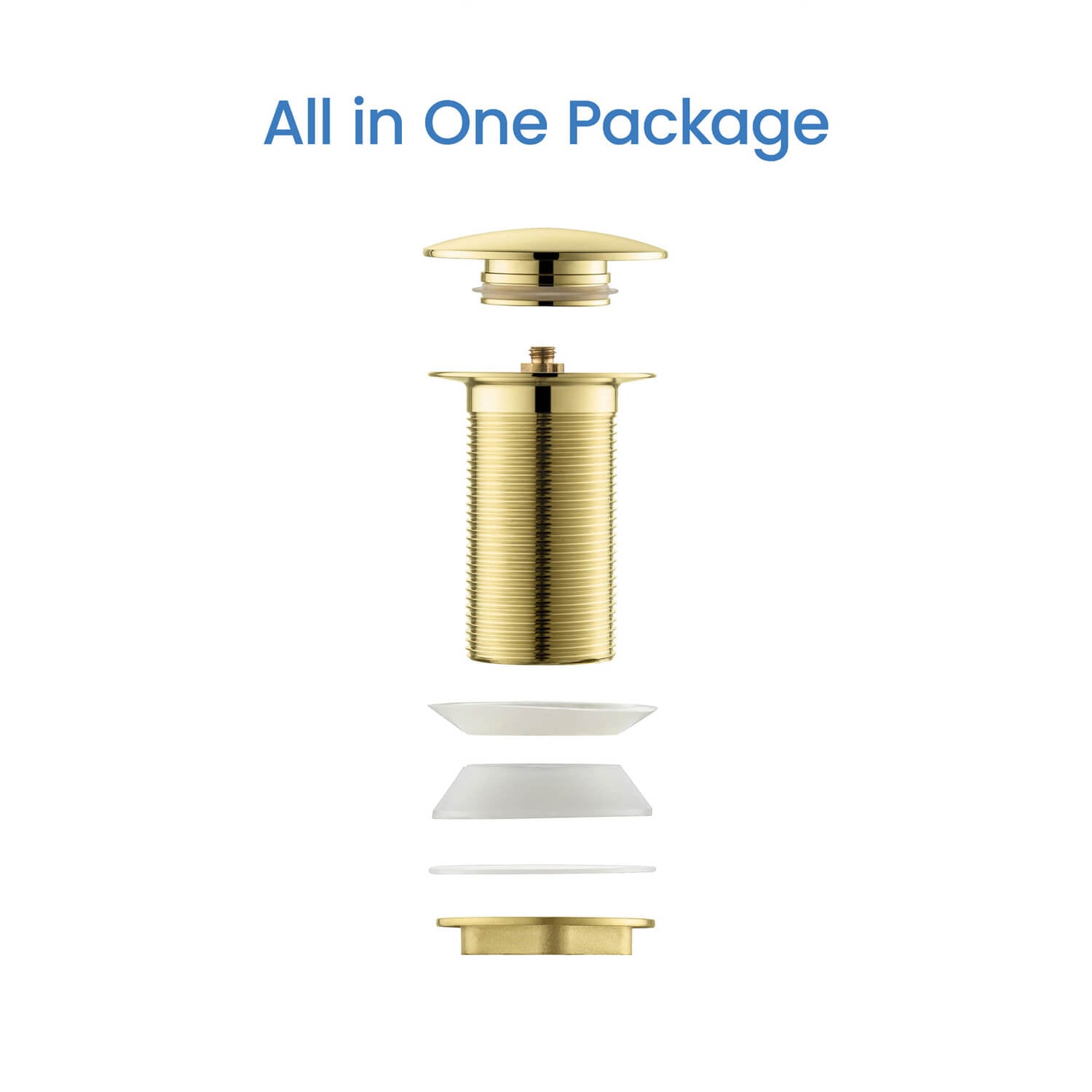

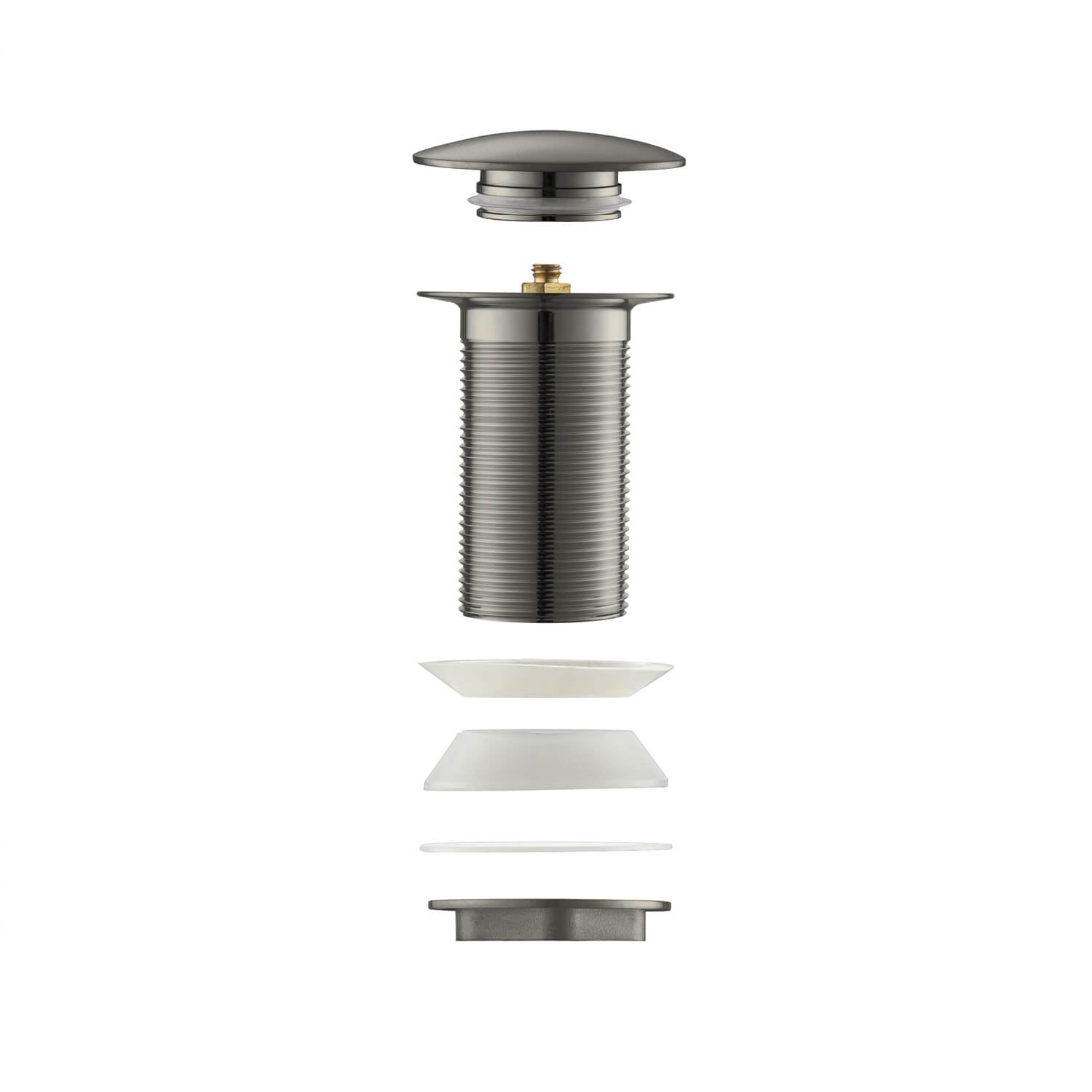

- Included Components: Pop-up drain body, push cover, sealing washers and locking nut
- Application: Residential, hospitality and project bathroom sinks
