Components
Two-Outlet Pressure-Balancing Rough-In Valve PBV42202
Key Features
Solid Brass Casting Rough Valve
Durable cast-brass construction provides reliable strength and long-term performance.
40 mm Pressure-Balance Cartridge
Yizhan 40 mm pressure-balance cartridge helps maintain a stable shower temperature during pressure fluctuations.
Integrated Check Valves & Service Stops
Built-in check valves help prevent reverse flow, while integral service stops simplify maintenance.
1/2" NPT Connections
Standard 1/2" NPT connections are designed for North American plumbing systems.
Plaster Guard with Built-In Level
The protective plaster guard and built-in level support accurate positioning during rough-in installation.
Three-Outlet Rotary Diverter
Rotate the diverter to select among three separate shower outlets.
Product Description

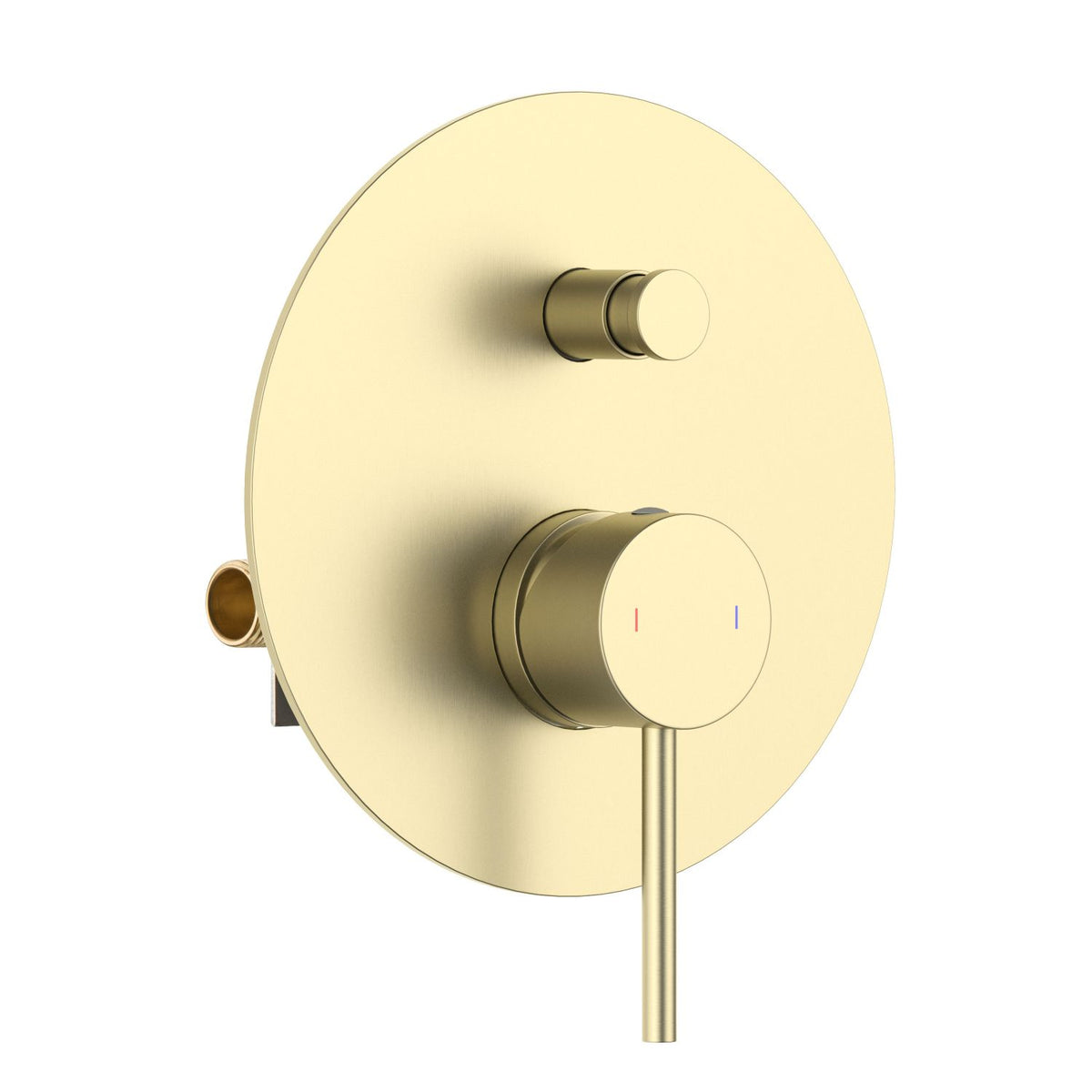

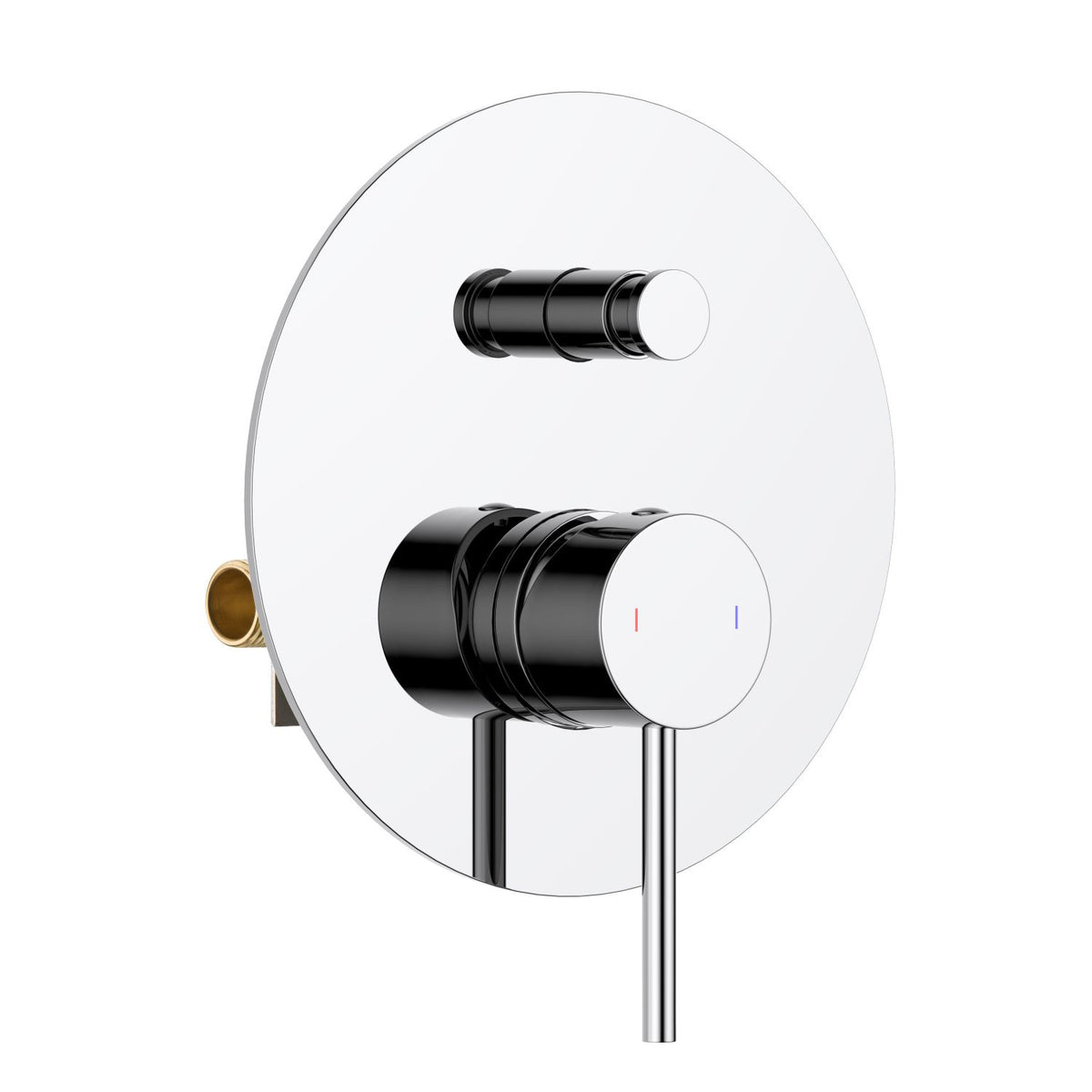

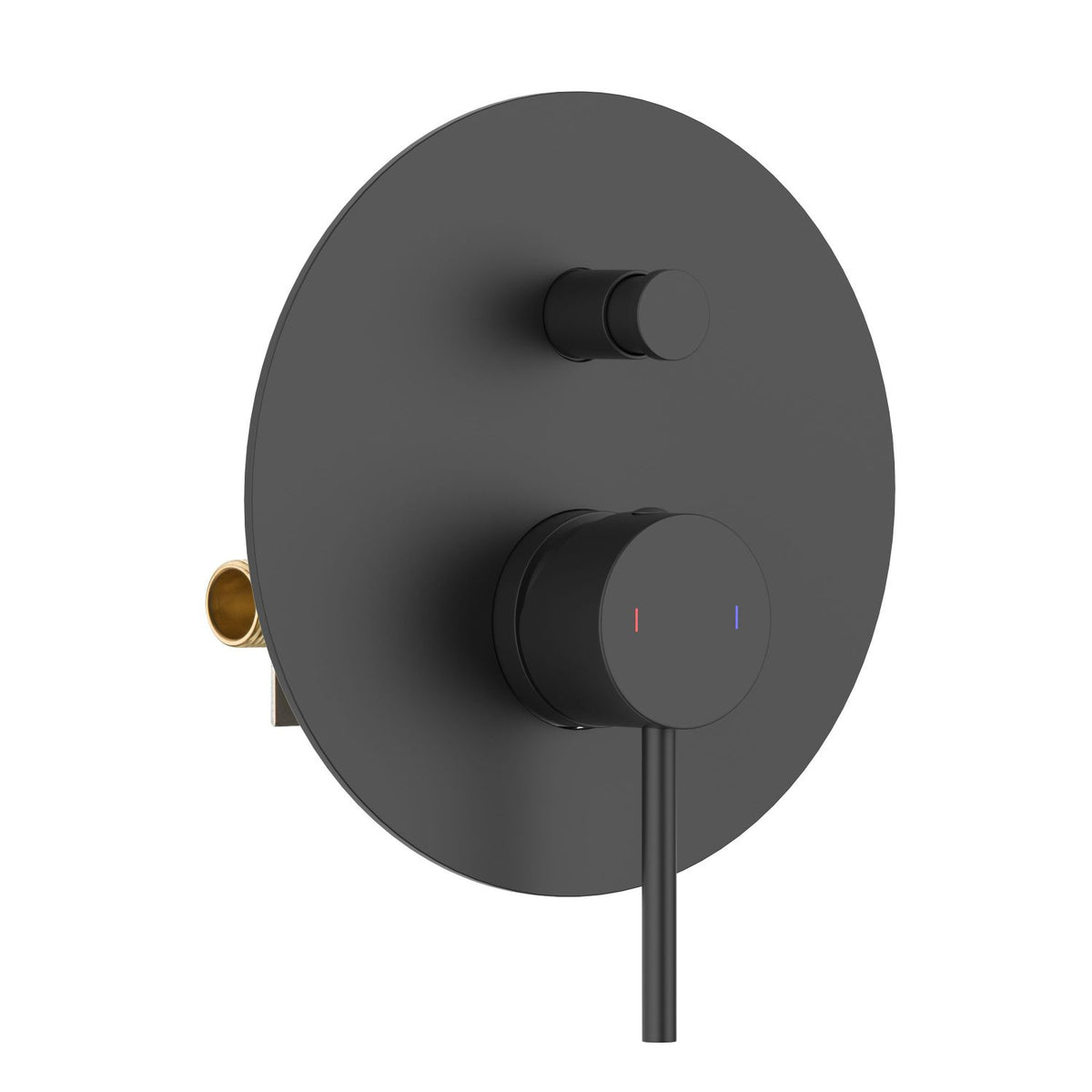

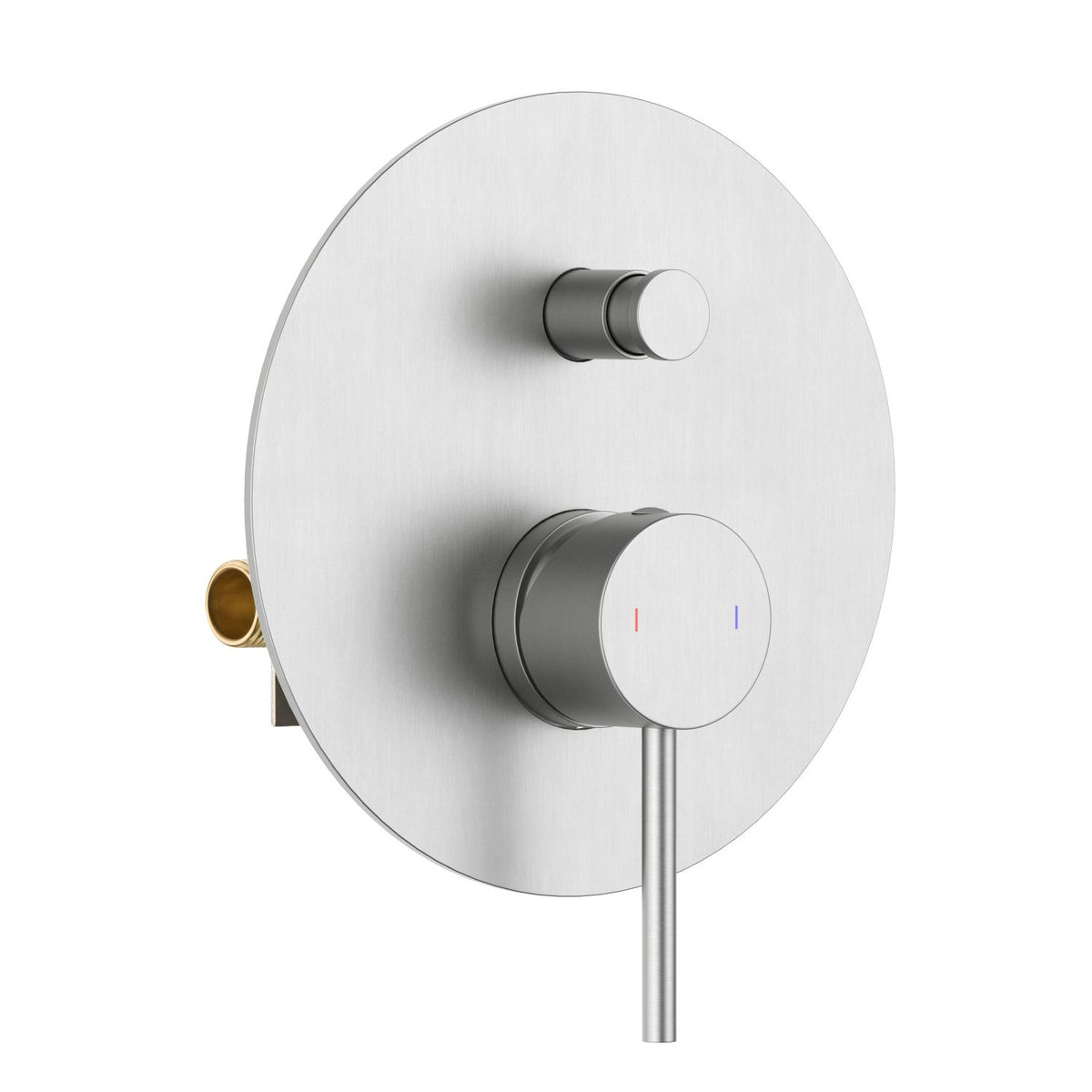

The CIRCULAR VT0942203 is a two-way concealed pressure-balance shower mixer with an auto-reset push-button diverter. Pressing the diverter directs water to the secondary outlet, while turning off the water automatically returns it to the default outlet for the next use.
Its solid brass valve, Taiwan Yizhan pressure-balancing cartridge, integrated service stops and 3 mm SUS304 trim plate provide reliable performance for concealed shower installations.
Features
- Solid Brass Valve: Provides durable, corrosion-resistant construction for long-term concealed installation.
- Pressure-Balancing Cartridge: The Taiwan Yizhan 40 mm cartridge helps maintain a more consistent shower temperature when supply pressure changes.
- Auto-Reset Push-Button Diverter: Press to direct water to the secondary outlet; the diverter automatically returns to the default outlet when the water is turned off.
- Integrated Service Stops: Built-in hot- and cold-water shutoffs simplify cartridge maintenance without shutting down the entire household supply.
- SUS304 Trim Plate: The 3 mm stainless steel plate provides strength, durability and a clean finished appearance.
- Solid Brass Handle: Provides sturdy operation and long-term durability.
- Standard Connections: G1/2 NPT inlet and outlet connections support common shower plumbing configurations.
- Concealed Installation: Keeps the valve body and pipework behind the wall for a clean appearance.
- Protective Packaging: Packed in a box with EPE foam to help prevent damage during handling and shipping.
Product Details
- Product type: Pressure-balance shower mixer
- Series: CIRCULAR
- Valve body: Solid brass
- Cartridge: Taiwan Yizhan 40 mm pressure-balancing cartridge
- Function: 2 way
- Number of outlets: 2
- Diverter: Auto-reset push-button diverter
- Diverter operation: Press to switch to the secondary outlet
- Automatic reset: Returns to the default outlet when water is turned off
- Service stops: Integrated hot and cold
- Connections: G1/2 NPT inlet and outlet
- Trim plate: 3 mm SUS304 stainless steel
- Trim plate shape: Round
- Handle material: Solid brass
- Installation: Concealed wall-mounted
- Packaging: Box with EPE foam
Why Aquavit for Shower System Programs ?
OEM/ODM Manufacturing
Flexible OEM/ODM support for your brand projects.
Custom Finishes
Multiple finish options to match your market needs.
Inspection Support
Quality control and inspection support for consistent supply.
Technical Documentation
Complete technical files to support your project development.
Working on a Project? Let's Build It Together.
Competitive pricing and expert support for basin faucet projects.
Inquire for Project/OEMFrequently Asked Questions
1. How do the different PBV4 valve configurations operate?
All PBV4 models use a lift-and-turn main control. Lift the handle to turn the water on and adjust the flow, then rotate it to control the temperature.
- 1-outlet model: Operates one shower outlet without a diverter.
- 2-outlet rotary-diverter model: Rotate the diverter handle to select either outlet.
- 2-outlet push-diverter model: Press the diverter to switch between the two outlets. It automatically resets when the water is turned off.
- 3-outlet rotary-diverter model: Rotate the diverter handle to select one of three outlets.
2. Can the rough-in valve be installed before the trim finish is selected?
Yes. The PBV4 rough-in valve has no decorative finish. Once the required number of outlets and diverter type have been confirmed, the valve can be installed during the rough-in stage. The trim design and finish can be selected later from compatible PBV4 options.
3. What if the rough-in valve is installed too deep?
Extension kits are available for installations that exceed the recommended rough-in depth. Please provide the model number and actual installation depth to our sales team so we can confirm the correct extension kit.
4. What are the flow rates of the 1-, 2- and 3-outlet PBV4 valves?
Approximate flow rates tested at 60 PSI are:
- 1-outlet valve: 5.3 GPM
- 2-outlet valve: 4.6 GPM per outlet
- 3-outlet valve: 4.8 GPM per outlet
Each outlet is tested individually. Actual flow may vary depending on supply pressure, piping layout and connected shower components.
5. What are the inlet and outlet connection sizes?
PBV4 valves use standard 1/2" NPT connections for compatibility with North American plumbing systems. Always verify the piping layout and outlet configuration before installation.
6. Are PBV4 valves and compatible shower systems cUPC certified?
Yes. Aquavit’s certification coverage includes PBV4 rough-in valves, multiple trim and handle designs, and a wide range of compatible shower components.
Aquavit uses a structured model-number system that allows customers to combine certified valves, trims and shower components according to their project requirements. This makes it possible to create customized shower configurations covered by the applicable cUPC listing.
Certification applies to listed models and approved combinations. Please confirm the final model configuration with Aquavit before ordering. For details, refer to the IAPMO cUPC listing, File No. 14173, on our Certifications page.
7. Can Aquavit provide a working display solution for showrooms?
Yes. We can provide a simplified operational display solution for showrooms and dealer displays. It does not require wall cutting or installation of a complete shower system, while still allowing customers to operate the controls and understand the valve functions. Contact our sales team for display options.
8. Can the valve and trim be ordered separately?
Yes. The PBV4 rough-in valve, compatible trim and shower components can be ordered separately or supplied as a complete shower system. This supports phased project purchasing, replacement requirements and customized system configurations.
